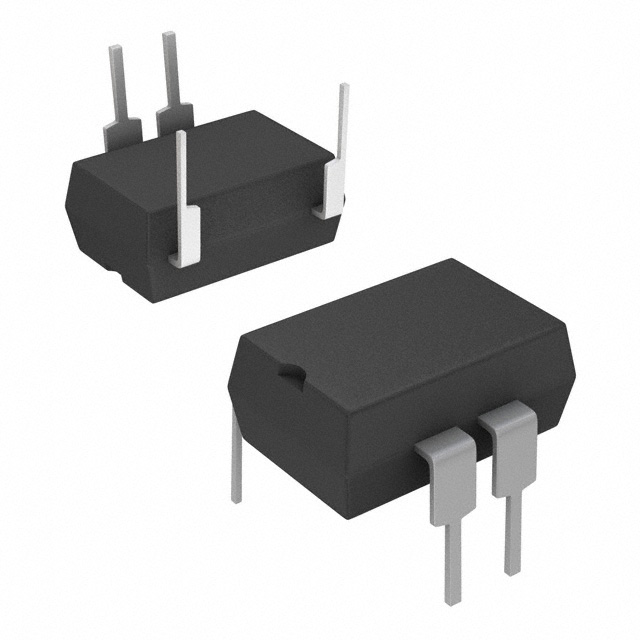

Relay SSR 25mA DC-IN 0.15A 300V AC-DC-OUT 4Pin PDIP Tube
The PVA33 Series AC Relay PVA is a singlepole, normally open, solid-state replacement for electromechanical relays used for general purpose switching of analog sinals. It utilizes ’s HEXFET power MOSFETs as the output switches, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode LED, which is optically isolated from the photovoltaic generator.
The PVA33 Series overcomes the limitations of both conventional electromechanical and reed relays by offering the solid state advantages of long life, fast operating speed, low pick up power, bounce-free operation, low thermal offset voltages and miniature package. These advantages allow product improvement and design innovations in many applications such as process control, multiplexing, automatic test equipment and data acquisition.
The PVA33 can switch analog signals from thermocouple level to 300 Volts peak AC or DC polarity. Signal frequencies into the RF range are easily controlled and switching rates up to 500Hz are achievable. The extremely small thermally generated offset voltages allow increased measurement accuracies.
These relays are packaged in 8-pin, molded DIP packages and available with either thru-hole or surfacemount “gull-wing" leads, in plastic shipping tubes.
Bounce-Free Operation
1010 Off-State Resistance
1,000 V/μsec dv/dt
0.2 μV Thermal Offset
5 mA Input Sensitivity
4,000 VRMS I/O Isolation
Solid-State Reliability
UL Recognized
ESD Tolerance:
4000V Human Body Model
500V Machine Mode
电源电压DC 7.00 V
额定电流 0.15 A
电容 6 pF
输出电流 150 mA
触点类型 SPST-NO
负载电流 150 mA
漏源极电阻 24 Ω
输入电流 25 mA
产品系列 PVA3354N
隔离电压 4 kV
正向电流 25 mA
输出电压Max 300 V
输入电流Min 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 300 VAC
输入电压 1.2 VDC
安装方式 Through Hole
引脚数 4
封装 DIP-8
封装 DIP-8
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
