PVG612APBF

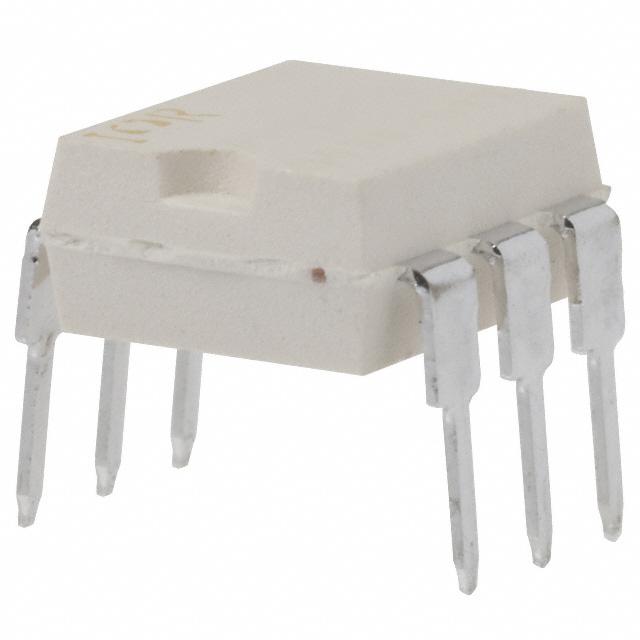

Relay SSR 25mA DC-IN 2A 60V AC-DC-OUT 6Pin PDIP Tube

General Description

The PVG612A Series Photovoltaic Relay is a single pole, normally open solid-state relay that can replace

electromechanical relays in many applications. It utilizes ’s proprietary HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode LED which is optically isolated from the photovoltaic generator.

Features

! Bounce-free operation

! High load current capacity

! High off-state resistance

! Linear AC/DC operation

! 4,000 VRMS I/O Isolation

! Solid-State reliability

! UL recognized; pending for lead-free part number PbF

! ESD Tolerance:

    4000V Human Body Model

    500V Machine Model

Applications

! Programmable Logic Controllers

! Computers and Peripheral Devices

! Audio Equipment

! Power Supplies and Power Distribution

! Control of Displays and Indicators

! Industrial Automation
