PVG612ASPBF

Relay SSR 25mA DC-IN 2A 60V AC-DC-OUT 6Pin PDIP SMT Tube

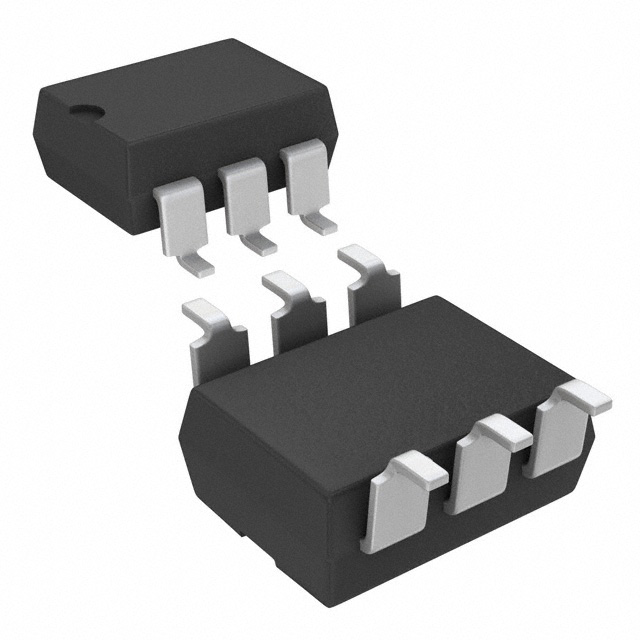

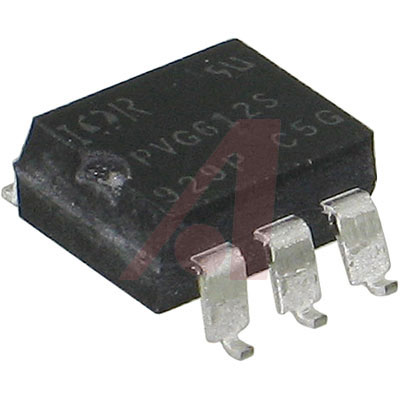

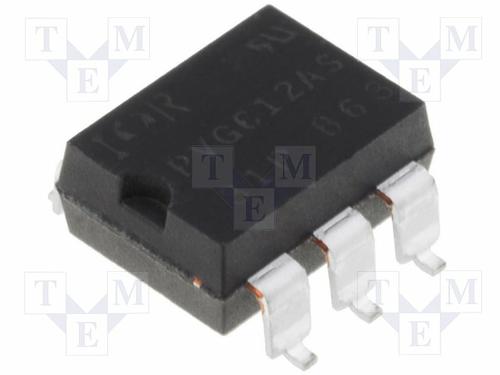

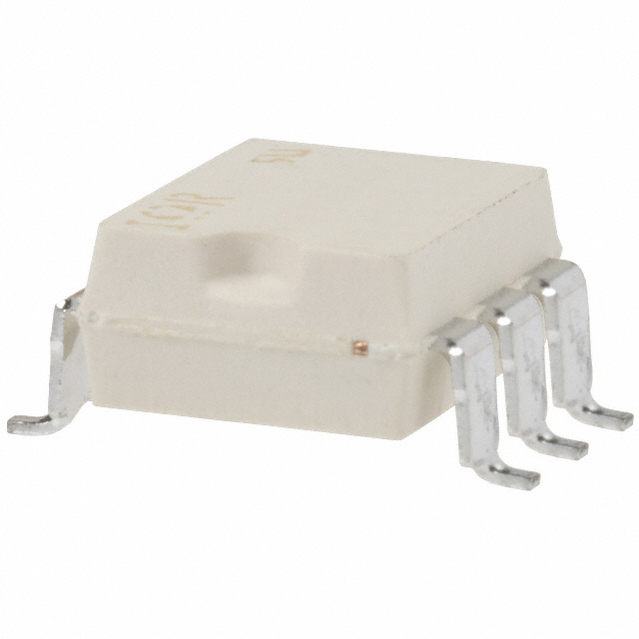

The PVG612A Series Photovoltaic Relay is a single pole, normally open solid-state relay that can replace electromechanical relays in many applications. It utilizes ’s proprietary HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode LED which is optically isolated from the photovoltaic generator. These units exceed the performance capabilities of electromechanical relays in operating life, sensitivity, stability of on-resistance, miniaturization, insensitivity to magnetic fields and ruggedness. The compact PVG612A is particularly suited for isolated switching of high currents from 12 to 48 Volt AC or DC power sources. Series PVG612A Relays are packaged in a 6-pin, molded DIP package with either thru-hole or surface mount gull-wing terminals. It is available in standard plastic shipping tubes or on tape-and-reel. Please refer to Part Identification information opposite.

**Features:**

* Bounce-Free Operation

* High Load Current Capacity

* High Off-State Resistance

* Linear AC/DC Operation

* 4000 VRMS I/O Isolation

* Solid State Reliability

* UL Recognized

* ESD Tolerance: - 4000 V Human Body Model - 500 V Machine Model
