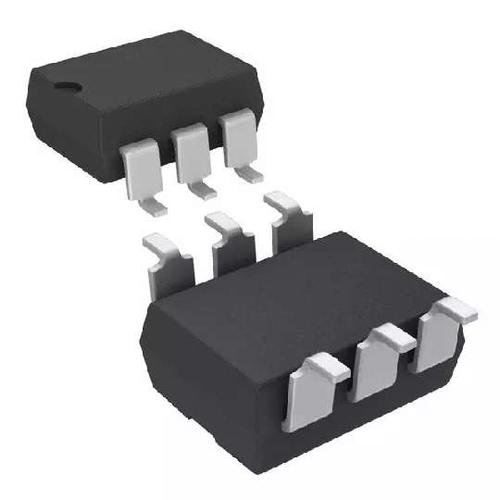

PVN012SPBF

Relay SSR 25mA DC-IN 2.5A 20V AC-DC-OUT 6Pin PDIP SMT Tube

The PVN012 Series Photovoltaic Relay at 100 milliohms features the lowest possible on-state resistance in a miniature package — lower than a comparable reed relay. The PVN012 is a single-pole, normally open solid state relay. It utilizes a GenerationV HEXFET output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode LED which is optically isolated from the photovoltaic generator. These units exceed the performance capabilities of electromechanical relays in life, sensitivity, stable on resistance, miniaturization, magnetic insensitivity and ruggedness. They are ideally suited for switching high currents or low level signals without distortion or injection of electrical noise. Series PVN012 Relays are packaged in a 6-lead molded DIP package with either thru-hole or surface mount gull-wing terminals. They are available in standard plastic shipping tubes or on tape and- reel. Please refer to part identification information opposite.

**Features:**

* 100 mO On-Resistance

* GenV HEXFET Output

* Bounce-Free Operation

* 2.5-4.5 Amp Capacity

* Linear AC/DC Operation

* 4000 VRMS I/O Isolation

* Solid State Reliability

* UL Recognized

* ESD Tolerance: - 4000 V Human Body Model - 500 V Machine Model
