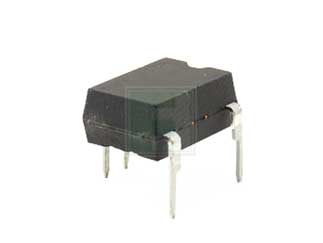

PVA1354NPBF

Relay SSR 25mA DC-IN 0.375A 100V AC-DC-OUT 4Pin PDIP Tube

The PVA13 Series AC Relay PVA is a singlepole, normally open, solid-state replacement for electromechanical relays used for general purpose switching of analog signals. It utilizes ’s HEXFET power MOSFETs as the output switches, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode LED, which is optically isolated from the photovoltaic generator.

The PVA13 Series overcomes the limitations of both conventional electromechanical and reed relays by offering the solid state advantages of long life, fast operating speed, low pick up power, bounce-free operation, low thermal offset voltages and miniature package. These advantages allow product improvement and design innovations in many applications such as process control, multiplexing, automatic test equipment and data acquisition.

The PVA13 can switch analog signals from thermocouple level to 100 Volts peak AC or DC polarity. Signal frequencies into the RF range are easily controlled and switching rates up to 450Hz are achievable. The extremely small thermally generated offset voltages allow increased measurement accuracies.

These relays are packaged in 8-pin, molded DIP packages and available with either thru-hole or surface-mount “gull-wing" leads, in plastic shipping tubes.

Bounce-Free Operation

1010 Off-State Resistance

1,000 V/μsec dv/dt

5 mA Input Sensitivity

4,000 VRMS I/O Isolation

Solid-State Reliability

UL Recognized

ESD Tolerance:

4000V Human Body Model

500V Machine Model
