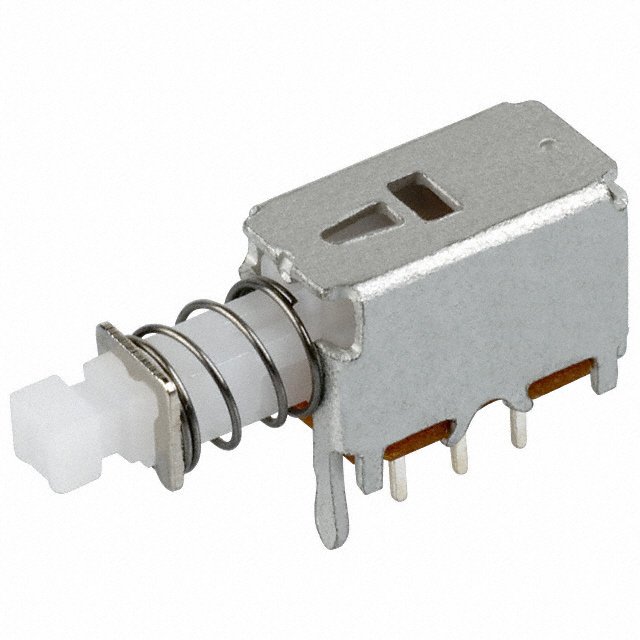

Switch Push Button DPDT Round Plunger 0.2A 30VDC Momentary Contact PC Pins Panel Mount/Through Hole Bag
按钮 DPDT 标准 通孔,直角
立创商城:
PN21SJNA03QE
得捷:
SWITCH PUSH DPDT 0.2A 30V
贸泽:
Pushbutton Switches DPDT MOM RA NON-SHRT
艾睿:
Switch Push Button N.O./N.C. DPDT Square Plunger 0.2A 30VDC Momentary Contact PC Pins Thru-Hole Tray
安富利:
Switch Push Button DPDT Round Plunger 0.2A 30VDC Momentary Contact PC Pins Panel Mount/Through Hole Bag
Chip1Stop:
Switch Push Button N.O./N.C. DPDT Square Plunger 0.2A 30VDC Momentary Contact PC Pins Thru-Hole Tray
Verical:
Switch Push Button N.O./N.C. DPDT Square Plunger 0.2A 30VDC Momentary Contact PC Pins Thru-Hole Tray
Newark:
# C & K COMPONENTS PN21SJNA03QE Pushbutton Switch,RIGHT ANGLE,DPDT,ON-OFF,PC TAIL Terminal,PCB Hole Count:8
MASTER:
Alternate & Momentary Action Pushbutton Switches
Online Components:
Alternate & Momentary Action Pushbutton Switches
Electro Sonic:
Alternate & Momentary Action Pushbutton Switches
触点电镀 Silver
额定电压DC 30 V
额定电流 200 mA
排数 2
触点类型 DPDT
触点额定电流 200 mA
额定电流Max 0.2A @30VDC
工作温度Max 60 ℃
工作温度Min -10 ℃
额定电压DC Max 30 V
接触电阻Max 30 mΩ
安装方式 Through Hole
封装 -
高度 8.3 mm
封装 -
触点材质 Phosphor Bronze
工作温度 -10℃ ~ 60℃
产品生命周期 10000 Cycles
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PN21SJNA03QE C&K Components | 当前型号 | 当前型号 |
