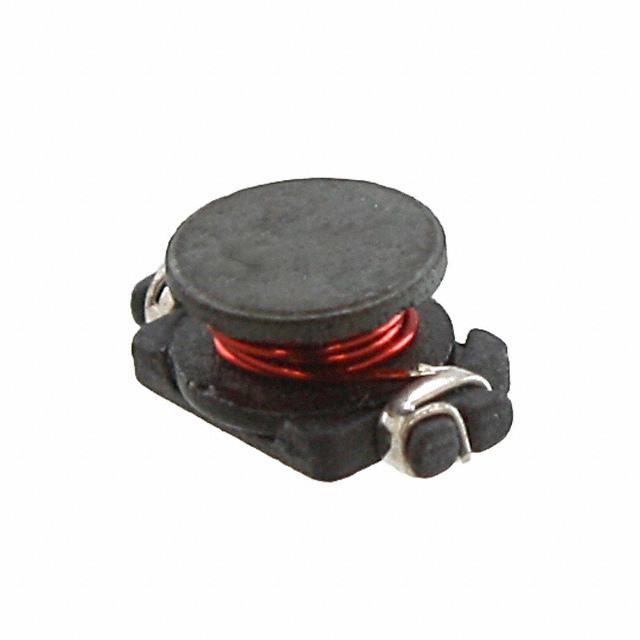

P0770.472NLT

P0770NL 系列线绕扼流圈Pulse P0770NL 系列非屏蔽鼓芯电感器适用于通用电源和过滤应用。高度：最大 2.9mm 体积：最大 6.6mm x 4.5mm 电流额定值：高达 1.5A 电感范围：4.7μH 至 220μH

P0770NL 系列线绕扼流圈

Pulse P0770NL 系列非屏蔽鼓芯器适用于通用电源和过滤应用。

高度：最大 2.9mm

体积：最大 6.6mm x 4.5mm

电流额定值：高达 1.5A

电感范围：4.7μH 至 220μH

得捷:
FIXED IND 4.7UH 1.5A 90 MOHM SMD

立创商城:
4.7uH ±20% 1.5A

欧时:
Pulse P0770NL 系列 4.7 μH 绕线贴片电感器 P0770.472NLT, ±20%容差, 1.5A Idc, 90mΩ最大直流电阻

贸泽:
Fixed Inductors 4.7uH 20% "472"

艾睿:
This power P0770.472NLT surface mount inductor from Pulse is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 130 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device is made with wirewound technology. Its test frequency is 100K Hz. It has an inductance of 4.7u H. This product is 6.6 mm long, 2.92 mm tall and 4.45 mm deep. This SMD inductor has a maximum DC current of 1.5 A with a maximum resistance of 90m Ohm. It has a tolerance of 20%.

安富利:
Ind Power Unshielded Wirewound 4.7uH 20% 100KHz 1.5A T/R

Verical:
Inductor Power Unshielded Wirewound 4.7uH 20% 100KHz 1.5A 0.09Ohm DCR T/R

CDI:
UNSHIELDED DRUM CORE INDUCTOR, DO1608C-XXX
