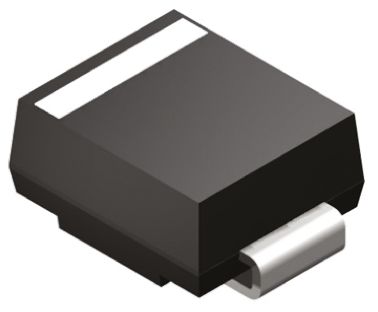

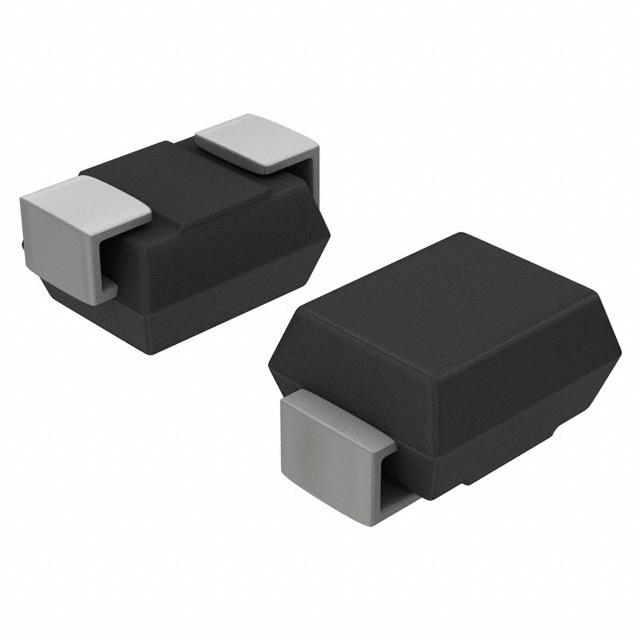

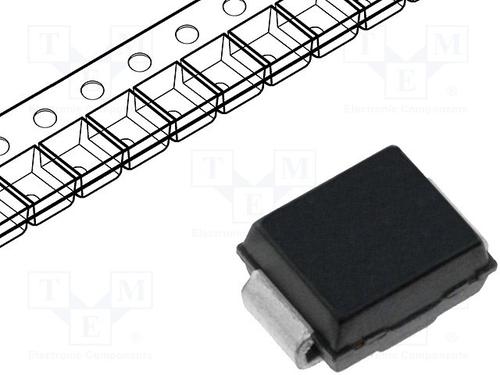

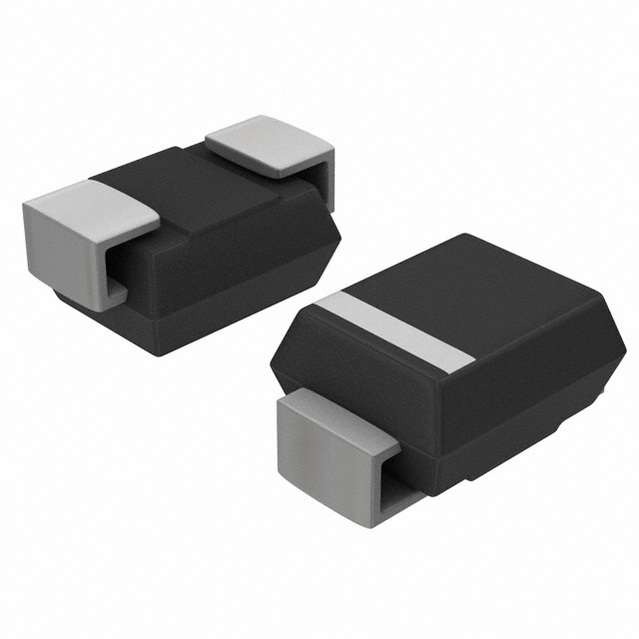

ON SEMICONDUCTOR P6SMB15AT3G TVS二极管, TVS, P6SMB系列, 单向, 12.8 V, 21.2 V, DO-214AA, 2 引脚
The P6SMB series unidirectional Zener Transient Voltage Suppressor Diode designed to protect voltage sensitive components from high voltage and high energy transients. It has excellent clamping capability, high surge capability, low Zener impedance and fast response time.
- .
- 5.8 to 171V Working peak reverse voltage range
- .
- 600W @ 1ms Peak power
- .
- ESD rating of Class 3 >16kV per human body model
- .
- Maximum clamp voltage @ peak pulse current
- .
- <5µA above 10V Low leakage current
- .
- 6.8 to 200V Standard Zener breakdown voltage range
- .
- <1ns Response time
- .
- -65 to 150°C Operating temperature range
额定电压DC 15.0 V
工作电压 12.8 V
额定功率 600 W
击穿电压 15 V
电路数 1
针脚数 2
耗散功率 600 W
钳位电压 21.2 V
最大反向电压（Vrrm） 12.8V
测试电流 1 mA
最大反向击穿电压 15.8 V
脉冲峰值功率 600 W
最小反向击穿电压 14.3 V
击穿电压 15 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.32 mm
宽度 3.56 mm
高度 2.2 mm
封装 DO-214AA
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, 汽车级, Communications & Networking, Industrial, Automation & Process Control, Medical, Automotive, Consumer Electronics, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
P6SMB15AT3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1SMB15AT3G 安森美 | 类似代替 | P6SMB15AT3G和1SMB15AT3G的区别 |
1SMB15CAT3 安森美 | 类似代替 | P6SMB15AT3G和1SMB15CAT3的区别 |
P6SMB15AT3 安森美 | 类似代替 | P6SMB15AT3G和P6SMB15AT3的区别 |
