ON SEMICONDUCTOR P6SMB15CAT3G 双向TVS二极管
600 Watt Peak Power Zener Transient Voltage Suppressors
BidirectionalPLASTIC SURFACE MOUNT ZENER OVERVOLTAGE TRANSIENT SUPPRESSORS
9.4−78 VOLTS 600 WATT PEAK POWER
The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener
impedance and fast response time. The SMB series is supplied in ’s exclusive, cost-effective, highly reliable Surmeticpackage and is ideally suited for use in communication
systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
Features
•Working Peak Reverse Voltage Range − 9.4 to 77.8 V
•Standard Zener Breakdown Voltage Range − 11 to 91 V
•Peak Power − 600 W @ 1 ms
•ESD Rating of Class 3 >16 KV per Human Body Model
•Maximum Clamp Voltage @ Peak Pulse Current
•Low Leakage < 5 A Above 10 V
•UL 497B for Isolated Loop Circuit Protection
•Response Time is Typically < 1 ns
•Pb−Free Packages are Available
额定电压DC 15.0 V
工作电压 12.8 V
额定功率 600 W
击穿电压 15.05 V
电路数 1
针脚数 2
耗散功率 600 W
钳位电压 21.2 V
最大反向电压(Vrrm) 12.8V
测试电流 1 mA
最大反向击穿电压 15.8 V
脉冲峰值功率 600 W
最小反向击穿电压 14.3 V
击穿电压 14.3 V
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 -65℃ ~ 150℃
安装方式 Surface Mount
引脚数 2

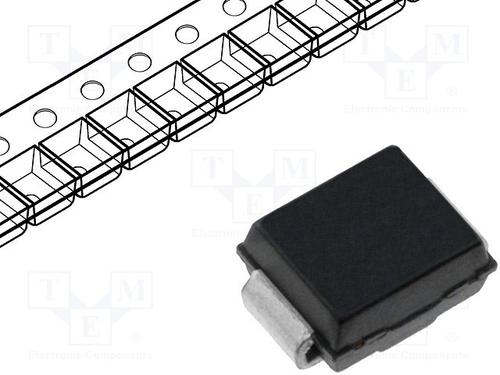

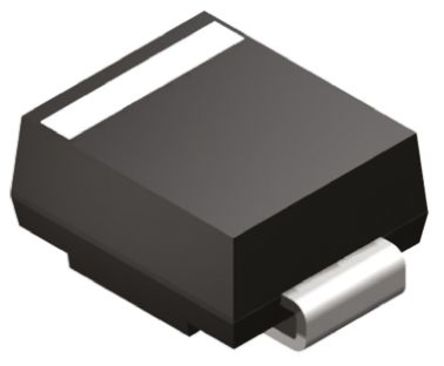

封装 SMB
长度 4.57 mm
宽度 3.95 mm
高度 2.41 mm
封装 SMB
工作温度 -65℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
P6SMB15CAT3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1SMB15CAT3G 安森美 | 类似代替 | P6SMB15CAT3G和1SMB15CAT3G的区别 |
P6SMB15CAT3 安森美 | 类似代替 | P6SMB15CAT3G和P6SMB15CAT3的区别 |
SM6T15CA 意法半导体 | 功能相似 | P6SMB15CAT3G和SM6T15CA的区别 |
