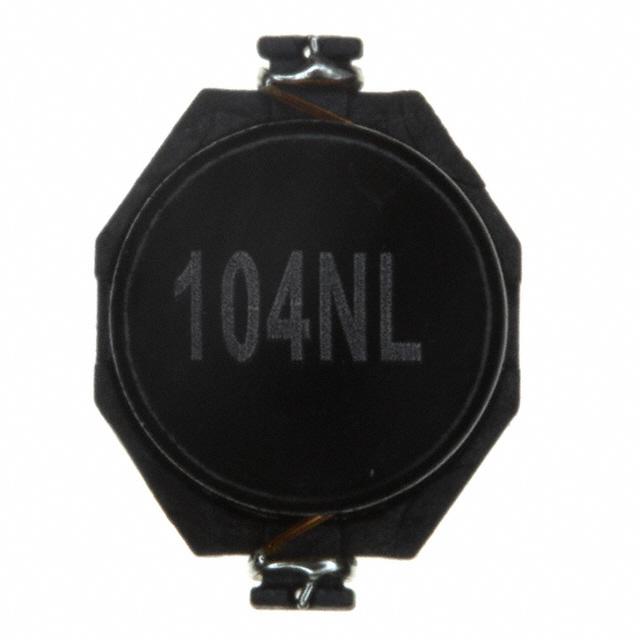

P0752.104NLT图片1

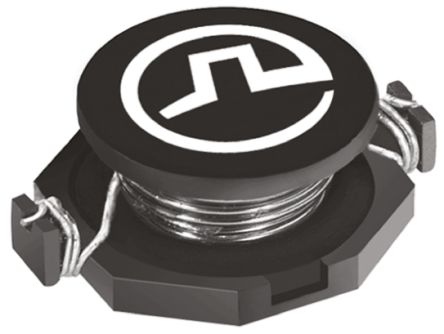

P0752.104NLT图片2
P0752.104NLT图片3
P0752.104NLT图片4
P0752.104NLT图片5
P0752.104NLT图片6
P0752.104NLT图片7
P0752.104NLT图片8
P0752.104NLT图片9
P0752.104NLT图片10
P0752.104NLT概述

PULSE ENGINEERING  P0752.104NLT  表面贴装功率电感器, P0752NL系列, 100 µH, ± 20%, 非屏蔽, 0.38 ohm, 1.2 A

P0751NL/52NL 系列线绕扼流圈

Pulse P0751NL/52NL 系列非屏蔽鼓芯器适用于通用电源和过滤应用。

高度:最大 5.5mm

体积:最大 13.0mm x 9.4mm

电流额定值:高达 6.8A

电感范围:1.0μH 至 1000μH


得捷:
FIXED IND 100UH 1.2A 380MOHM SMD


立创商城:
100uH ±20% 1.2A 380mΩ


欧时:
Pulse P0751NL/52NL 系列 100 μH 绕线贴片电感器 P0752.104NLT, ±20%容差, 1.3A Idc, 380mΩ最大直流电阻


e络盟:
PULSE ENGINEERING  P0752.104NLT  表面贴装功率电感器, P0752NL系列, 100 µH, ± 20%, 非屏蔽, 0.38 ohm, 1.2 A


艾睿:
This power P0752.104NLT surface mount inductor from Pulse is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 130 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 20%. Its test frequency is 100K Hz. This product is 12.95 mm long, 5.46 mm tall and 9.4 mm deep. It has an inductance of 100u H. This SMD inductor has a maximum DC current of 1.2 A with a maximum resistance of 380m Ohm. This device is made with wirewound technology.


安富利:
Ind Power Unshielded Wirewound 100uH 20% 100KHz 1.2A T/R


Chip1Stop:
Ind Power Unshielded Wirewound 100uH 20% 100KHz 1.2A T/R


Verical:
Inductor Power Unshielded Wirewound 100uH 20% 100KHz 1.2A 0.38Ohm DCR T/R


CDI:
UNSHIELDED DRUM CORE INDUCTOR, DO3316P-XXX


P0752.104NLT中文资料参数规格
技术参数

额定电流 1.2 A

容差 ±20 %

电感 100 µH

产品系列 P0752

屏蔽 No

电感公差 ±20 %

测试频率 100 kHz

电阻DC) ≤380 mΩ

工作温度Max 130 ℃

工作温度Min -40 ℃

电阻DC Max 0.38 Ω

封装参数

安装方式 Surface Mount

引脚数 2

封装 12.95mm x 9.4mm x 5.46mm

外形尺寸

长度 12.95 mm

宽度 9.4 mm

高度 5.46 mm

封装 12.95mm x 9.4mm x 5.46mm

物理参数

工作温度 -40℃ ~ 130℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

数据手册

在线购买P0752.104NLT
型号: P0752.104NLT
描述:PULSE ENGINEERING  P0752.104NLT  表面贴装功率电感器, P0752NL系列, 100 µH, ± 20%, 非屏蔽, 0.38 ohm, 1.2 A
替代型号P0752.104NLT
型号/品牌 代替类型 替代型号对比

P0752.104NLT

Pulse Electronics 普思电子

当前型号

当前型号

CDR95NP-101MC

胜美达

功能相似

P0752.104NLT和CDR95NP-101MC的区别

P0752.104NL

普思电子

功能相似

P0752.104NLT和P0752.104NL的区别
