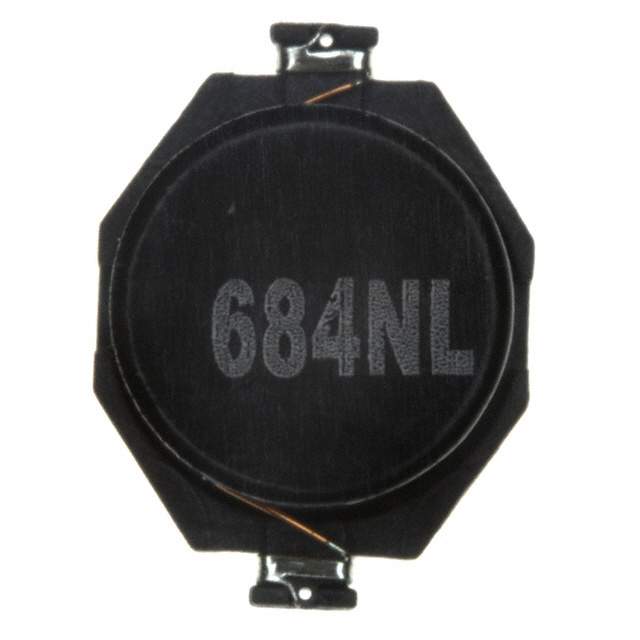

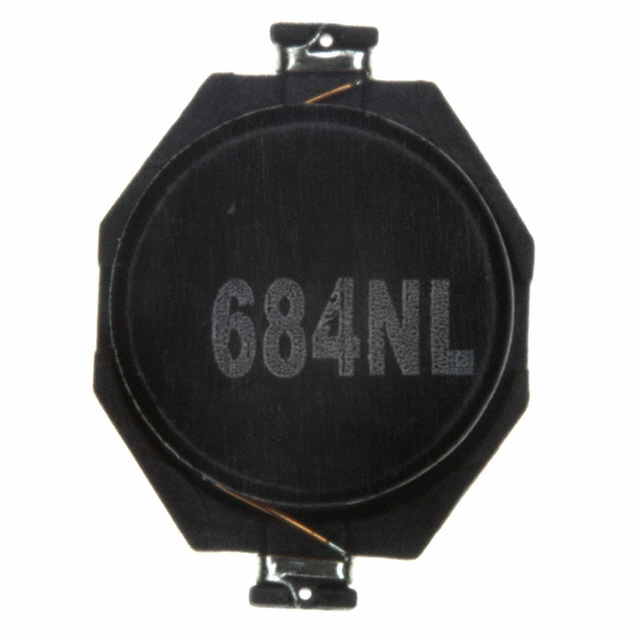

P0752.684NLT

680uH ±20% 400mA

680µH Unshielded Wirewound Inductor 400mA 2.17Ohm Max Nonstandard

立创商城:
680uH ±20% 400mA 2.17Ω

得捷:
FIXED IND 680UH 400MA 2.17 OHM

艾睿:
Save valuable space on a PCB with this power P0752.684NLT surface mount inductor from Pulse. This SMD inductor has an operating temperature range of -40 °C to 130 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has an inductance of 680u H. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 2.17 Ohm. It has a tolerance of 20%. Its test frequency is 100K Hz. This product is 12.95 mm long, 5.46 mm tall and 9.4 mm deep. This device utilizes wirewound technology.

安富利:
Ind Power Unshielded Wirewound 680uH 20% 100KHz 400mA T/R

Verical:
Inductor Power Unshielded Wirewound 680uH 20% 100KHz 0.4A 2.17Ohm DCR T/R

CDI:
UNSHIELDED DRUM CORE INDUCTOR, DO3316P-XXX
