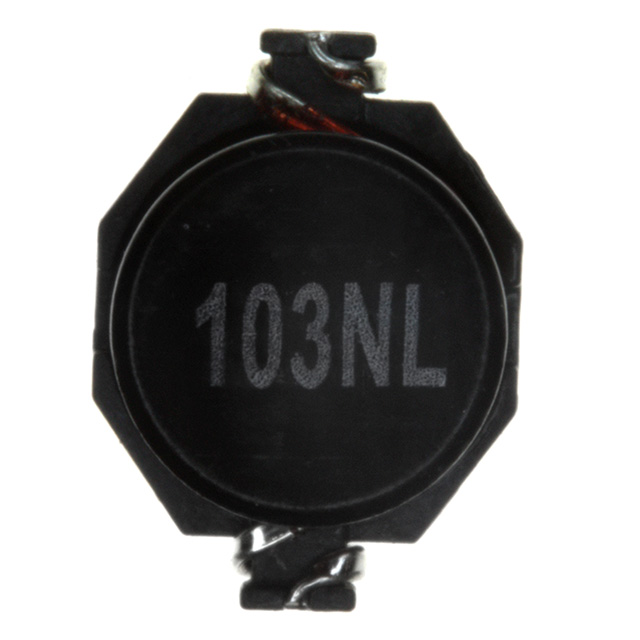

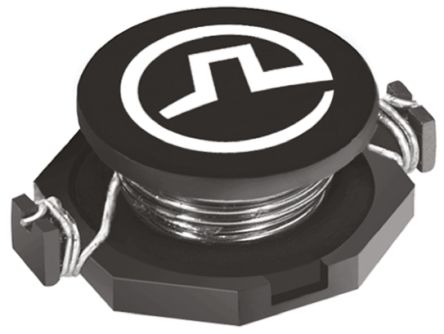

PULSE ENGINEERING P0751.103NLT 表面贴装功率电感器, P0751NL系列, 10 µH, ± 20%, 非屏蔽, 0.05 ohm, 3.8 A
P0751NL/52NL 系列线绕扼流圈
Pulse P0751NL/52NL 系列非屏蔽鼓芯器适用于通用电源和过滤应用。
高度:最大 5.5mm
体积:最大 13.0mm x 9.4mm
电流额定值:高达 6.8A
电感范围:1.0μH 至 1000μH
得捷:
FIXED IND 10UH 3.8A 50 MOHM SMD
立创商城:
10uH ±20% 3.8A 50mΩ
欧时:
Pulse P0751NL/52NL 系列 10 μH 绕线贴片电感器 P0751.103NLT, ±20%容差, 3.9A Idc, 50mΩ最大直流电阻
贸泽:
Fixed Inductors 10uH 20% 3.8A
e络盟:
PULSE ENGINEERING P0751.103NLT 表面贴装功率电感器, P0751NL系列, 10 µH, ± 20%, 非屏蔽, 0.05 ohm, 3.8 A
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power P0751.103NLT surface mount inductor from Pulse to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 130 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 10u H. It has a tolerance of 20%. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 3.8 A with a maximum resistance of 50m Ohm. This product is 12.95 mm long, 5.46 mm tall and 9.4 mm deep. This device utilizes wirewound technology.
安富利:
Ind Power Unshielded Wirewound 10uH 20% 100KHz 3.8A T/R
Verical:
Inductor Power Unshielded Wirewound 10uH 20% 100KHz 3.8A 0.05Ohm DCR T/R
儒卓力:
**P0751 10uH 3800mA 20% WWT **
CDI:
UNSHIELDED DRUM CORE INDUCTOR, DO3316P-XXX
Win Source:
10μH Unshielded Wirewound Inductor 3.8A 50 mOhm Max Nonstandard
额定电流 3.8 A
容差 ±20 %
电感 10 µH
产品系列 P0751
屏蔽 No
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤50 mΩ
工作温度Max 130 ℃
工作温度Min -40 ℃
电阻DC Max 0.05 Ω
安装方式 Surface Mount
引脚数 2
封装 12.95mm x 9.4mm x 5.46mm
长度 12.95 mm
宽度 9.4 mm
高度 5.46 mm
封装 12.95mm x 9.4mm x 5.46mm
重量 0.8 g
工作温度 -40℃ ~ 130℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
P0751.103NLT Pulse Electronics 普思电子 | 当前型号 | 当前型号 |
P0751.103NL 普思电子 | 类似代替 | P0751.103NLT和P0751.103NL的区别 |
P0751.103T 普思电子 | 功能相似 | P0751.103NLT和P0751.103T的区别 |
CDR95NP-100MC 胜美达 | 功能相似 | P0751.103NLT和CDR95NP-100MC的区别 |
