P0751NL/52NL 系列线绕扼流圈Pulse P0751NL/52NL 系列非屏蔽鼓芯电感器适用于通用电源和过滤应用。高度:最大 5.5mm 体积:最大 13.0mm x 9.4mm 电流额定值:高达 6.8A 电感范围:1.0μH 至 1000μH
P0751NL/52NL 系列线绕扼流圈

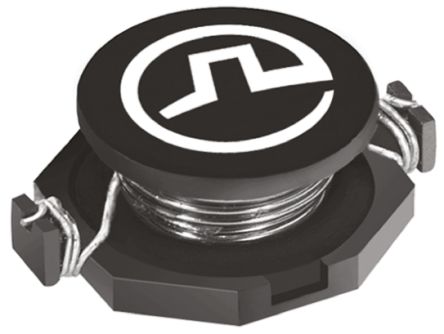

Pulse P0751NL/52NL 系列非屏蔽鼓芯器适用于通用电源和过滤应用。
高度:最大 5.5mm
体积:最大 13.0mm x 9.4mm
电流额定值:高达 6.8A
电感范围:1.0μH 至 1000μH
立创商城:
1mH ±20% 300mA 3.3Ω
得捷:
FIXED IND 1MH 300MA 3.3 OHM SMD
欧时:
Pulse P0751NL/52NL 系列 1 mH 绕线贴片电感器 P0752.105NLT, ±20%容差, 300mA Idc, 3.3Ω最大直流电阻
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power P0752.105NLT surface mount inductor from Pulse is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 130 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 3.3 Ohm. This device utilizes wirewound technology. This product is 12.95 mm long, 5.46 mm tall and 9.4 mm deep. Its test frequency is 100K Hz. It has a tolerance of 20%. It has an inductance of 1m H.
安富利:
Ind Power Unshielded Wirewound 1mH 20% 100KHz 300mA T/R
Chip1Stop:
Ind Power Unshielded Wirewound 1mH 20% 100KHz 300mA T/R
Verical:
Inductor Power Unshielded Wirewound 1000uH 20% 100KHz 0.3A 3.3Ohm DCR T/R
CDI:
UNSHIELDED DRUM CORE INDUCTOR, DO3316P-XXX
Win Source:
FIXED IND 1MH 300MA 3.3 OHM SMD
额定电流 300 mA
容差 ±20 %
电感 1 mH
产品系列 P0752
屏蔽 No
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤3.3 Ω
工作温度Max 130 ℃
工作温度Min -40 ℃
电阻DC Max 3.3 Ω
安装方式 Surface Mount
引脚数 2
封装 Nonstandard

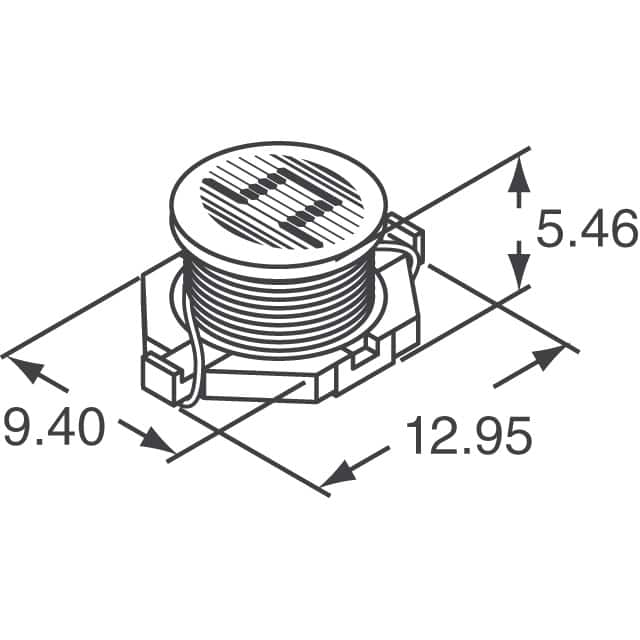

长度 12.95 mm
宽度 9.4 mm
高度 5.46 mm
封装 Nonstandard
工作温度 -40℃ ~ 130℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
P0752.105NLT Pulse Electronics 普思电子 | 当前型号 | 当前型号 |
P0752.105NL 普思电子 | 完全替代 | P0752.105NLT和P0752.105NL的区别 |
MCPD3316MT102 Multicomp | 功能相似 | P0752.105NLT和MCPD3316MT102的区别 |
P0752.105 普思电子 | 功能相似 | P0752.105NLT和P0752.105的区别 |
