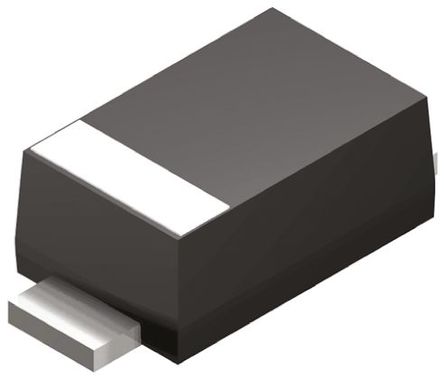

PTVS33VS1UR

NXP  PTVS33VS1UR  TVS二极管, AEC-Q139, AEC-Q101 PTVS系列, 单向, 33 V, 53.3 V, SOD-123, 2 引脚

极性Polarization | 单向 Unidirectional \---|--- 反向关断电压/工作电压VRWMReverse Standoff Voltage | 33V 反向击穿电压VBRBreakdown Voltage | 36.7V 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 400W 峰值脉冲电流IPPmPeak Forward Surge Current | 7.5A 额定耗散功率PdPower dissipation | Description & Applications | FEATURES •400 W Transient Voltage Suppressor •Rated peak pulse power: •PPPM = 400 W 350 W for 3V3 •Small plastic package suitable for surface-mounted design •Reverse standoff voltage range: •VRWM = 3.3 V to 64 V •Very low package height: 1 mm •Reverse current: IRM = 0.001 μA •AEC-Q101 qualified 描述与应用 | 特性 •400W的瞬态电压抑制器 •额定峰值脉冲功率： •Pppm=400 W（350 W3V3） •小塑料封装，适用于表面贴装设计 •反向关断电压范围： •VRWM=3.3 V至64 V •非常低的封装高度：1毫米 •反向电流：IRM=0.001μA •AEC-Q101合格
