NXP PSSI2021SAY,115 芯片, 电流源, 50MA, 75V, SOT353
The is a constant Current Source. It is made of resistor-equipped PNP transistor with two diodes on one chip. Stabilized output current of between 15µA and 50mA by connection of an external resistor between pins 4 and 5.
- .
- One Chip Integrated Constant Current Source
- .
- Output Current Setting by Use of an External Resistor
- .
- Reduces Component Count and Board Space
- .
- AEC-Q101 Qualified
电源电压DC 75.0 V
输出电流 50 mA
供电电流 370 mA
极性 PNP
耗散功率 335 mW
输出电流Max 50 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 335 mW
输入电压 75 V
安装方式 Surface Mount
引脚数 5

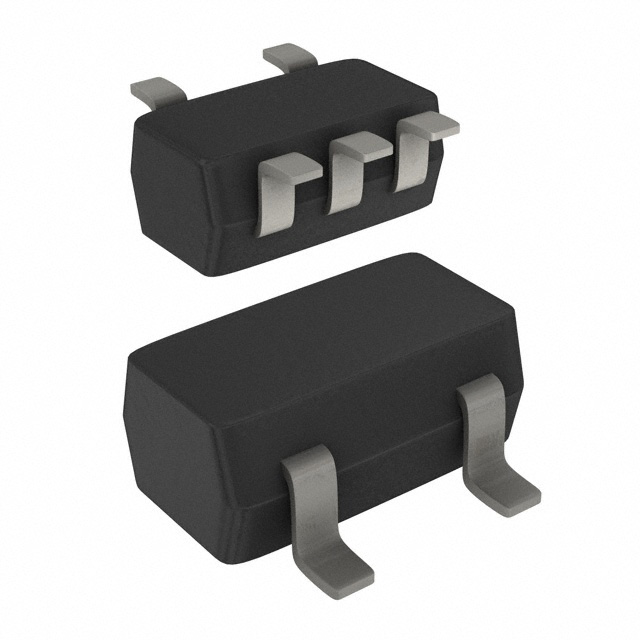

封装 SOT-353
高度 1 mm
封装 SOT-353
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, 电源管理, Automotive, 音频, LED Lighting, Automation & Process Control, 自动化与过程控制, 发光二极管照明, 车用, Audio
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
