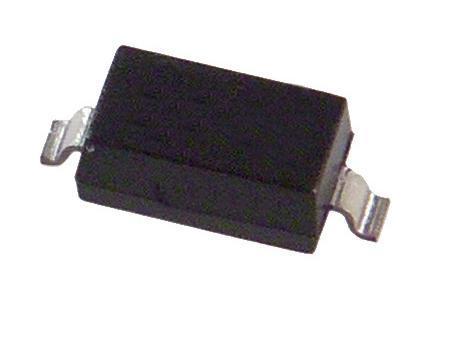

PMEG6010CEH

NXP  PMEG6010CEH  肖特基整流器, 屏障, 单, 60 V, 1 A, SOD-123F, 2 引脚, 660 mV

The from is surface mount very low VF MEGAplanar maximum efficiency general application schottky barrier rectifier in SOD-123F package. This device is intended for use in low voltage rectification, high efficiency DC/DC conversion, switch mode power supply, reverse polarity protection and low power consumption applications.

.

Automotive grade AEC-Q101 qualified

.

Guard ring for stress protection

.

Maximum repetitive reverse voltage Vrrm of 60V

.

Non repetitive forward surge current IFSM of 9A

.

Forward current IfAV of 1A

.

Maximum forward voltage VF of 660mV at IF 1A

.

Operating ambient temperature range from -65°C to 150°C
