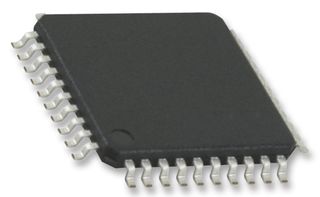

MICROCHIP PIC16F887T-I/PT 微控制器, 8位, 闪存, AEC-Q100, PIC16F8xxx, 20 MHz, 14 KB, 368 Byte, 44 引脚, TQFP
The is a mid-range PIC16 family 8-bit powerful 200 nanosecond instruction execution yet easy-to-program only 35 single word instructions CMOS flash based Microcontroller packs powerful PIC®RISC architecture. This product offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including 14kB of addressable program memory size, 368bytes of data memory size, 36 general-purpose I/O pins, two comparators and 14-channel 10-bit analog-to-digital A/D converter. This device operates at a maximum frequency of 20MHz with wide operating voltage of 2 to 5.5V.
频率 20 MHz
电源电压DC 5.00 V, 5.50 V max
针脚数 44
时钟频率 20.0 MHz
RAM大小 368 b
位数 8
耗散功率 800 mW
I/O引脚数 35
存取时间 20.0 µs
内核架构 PIC
模数转换数ADC 1
输入/输出数 36 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 800 mW
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 44

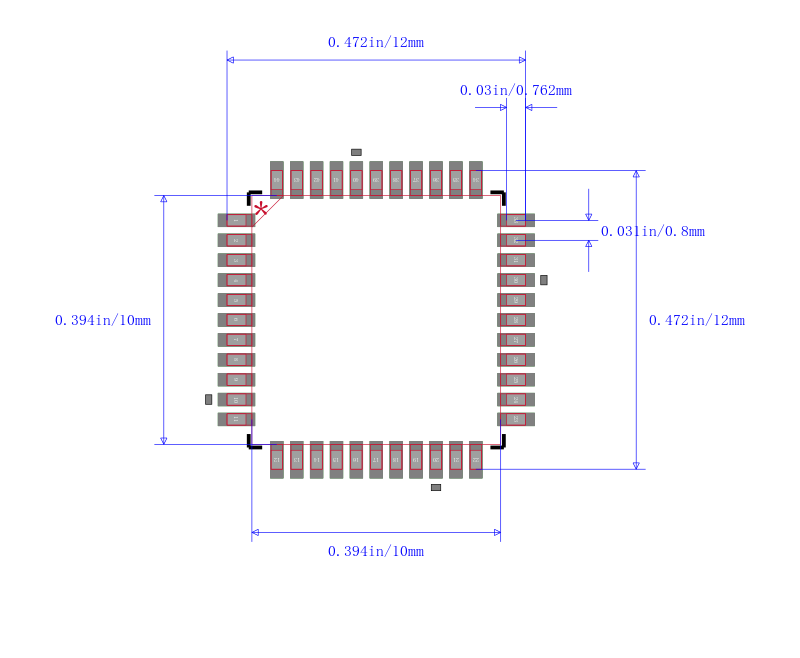

封装 TQFP-44
封装 TQFP-44
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, 安全, Security, Lighting, 工业, 医用, 照明, Medical, 电机驱动与控制, 消费电子产品, Automotive, Consumer Electronics, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8542310001
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC16F887T-I/PT Microchip 微芯 | 当前型号 | 当前型号 |
PIC16F887-I/PT 微芯 | 类似代替 | PIC16F887T-I/PT和PIC16F887-I/PT的区别 |
PIC16F887-E/PT 微芯 | 类似代替 | PIC16F887T-I/PT和PIC16F887-E/PT的区别 |
PIC16F887-I/ML 微芯 | 类似代替 | PIC16F887T-I/PT和PIC16F887-I/ML的区别 |
