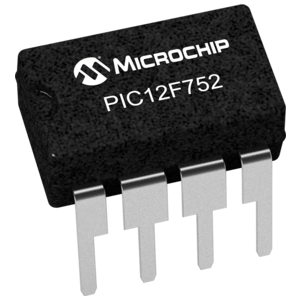

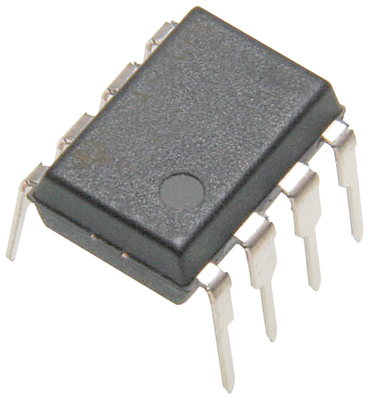

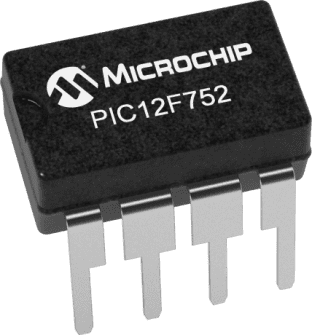

PIC12HV752-I/P

PIC12F752 8-Bit Flash MicrocontrollersMicrochip’s PIC12 Microcontrollers MCUs were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable OTP parts, this range of devices continues to expand as extra features and further improvements are added. The PIC12F752 family of microcontrollers is based upon Microchip’s mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 1.8 Kbytes program memory with data memory consisting of 64 bytes RAM. On board is a configurable RC oscillator with ±1% accuracy.### Features35 Instructions 8 Level Hardware Stack 8 MHz Internal Oscillator – Selectable 8 MHz to 31 kHZ 6 I/O Pins 2 Comparators 4 Channel 10-bit Analogue to Digital Converter ADC Capture, Compare, PWM Module CCP Three 8-bit Timers One 16-bit Timer Complementary Output Generator COG In-Circuit Debug ICD In Circuit Serial Programming ICSP ### PIC12F 微控制器### Microchip PIC12F 8 位 PIC® 微控制器Microchip 的 PIC12F 微控制器 MCU 是世界首个 8 引脚微控制器。 最初已经作为一次可编程 OTP 部件推出，此系列的设备将继续扩展为 Microchip 添加额外功能，进一步提高规格，并继续提供比以前更大的值。 PIC12F 成功的关键是在一个 8 引脚封装中允许六个输入/输出通道的内部 RC 振荡器。 此 RC 振荡器的更高版本可在 31kHz 和 32MHz 之间配置。

PIC12F752 8-Bit Flash Microcontrollers

’s PIC12 Microcontrollers MCUs were the world’s first 8-Pin microcontrollers. Originally launched as One Time Programmable OTP parts, this range of devices continues to expand as extra features and further improvements are added.

The PIC12F752 family of microcontrollers is based upon Microchip’s mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, 1.8 Kbytes program memory with data memory consisting of 64 bytes RAM. On board is a configurable RC oscillator with ±1% accuracy.

### Features

35 Instructions

8 Level Hardware Stack

8 MHz Internal Oscillator – Selectable 8 MHz to 31 kHZ

6 I/O Pins

2 Comparators

4 Channel 10-bit Analogue to Digital Converter ADC

Capture, Compare, PWM Module CCP

Three 8-bit Timers

One 16-bit Timer

Complementary Output Generator COG

In-Circuit Debug ICD

In Circuit Serial Programming ICSP

### Microchip PIC12F 8 位 PIC®

Microchip 的 PIC12F 微控制器 MCU 是世界首个 8 引脚微控制器。 最初已经作为一次可编程 OTP 部件推出，此系列的设备将继续扩展为 Microchip 添加额外功能，进一步提高规格，并继续提供比以前更大的值。 PIC12F 成功的关键是在一个 8 引脚封装中允许六个输入/输出通道的内部 RC 振荡器。 此 RC 振荡器的更高版本可在 31kHz 和 32MHz 之间配置。
