PIC16F1709-I/ML

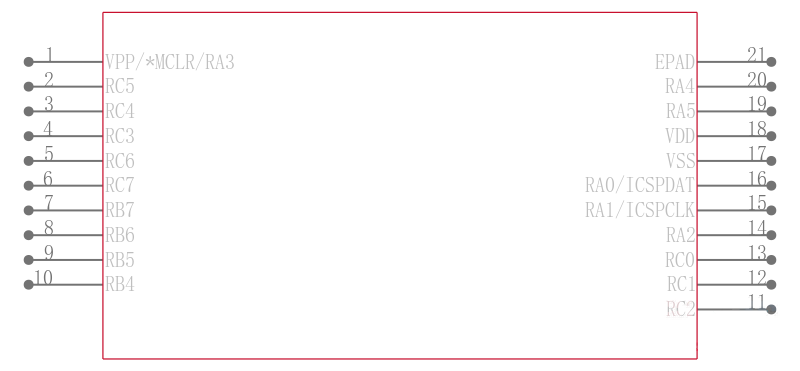

MICROCHIP  PIC16F1709-I/ML  微控制器, 8位, 闪存, PIC16F17xx, 32 MHz, 14 KB, 1 KB, 20 引脚, QFN

**PIC16F170X/171X Product Family

Flexible Intelligence with On-Board Analog

**The PIC16F170X/171x MCU family combines the intelligence and flexibility of our cutting edge Core Independent Peripherals with the cost-effective integration of op amps, comparators, and other Intelligent Analog peripherals.

Core Independent Peripherals take 8-bit performance to a new level by performing system functions autonomously, with much lower latency and power consumption than interrupt-based task handling. Additionally, they simplify the implementation of complex control systems by allowing designers to isolate each system function for easy development and troubleshooting.

The family also offers a rich set of analog peripherals, including Dual Op Amps to drive analog control loops, amplify signals from sensors, and perform basic signal conditioning. Other on-chip Intelligent Analog features include internal High-Speed Comparators, 10-bit ADC and 8-bit DAC. These 14-, 20-, 28-, and 40-pin devices also feature Zero Cross Detect, which simplifies TRIAC control, synchronized switching control, and timing. Together, they enable designers to reduce system cost and board space while improving EMI/EMC performance.

**Choose Your Path with Flexible Routing Features

**PIC16F170x/171x MCUs offer Peripheral Pin Select PPS, which gives system developers the ability to configure any digital peripheral to any I/O pin. This flexible pin mapping feature provides increased freedom and optimization of the MCU’s peripheral resources that designers use in their application. When combined with the Configurable Logic Cell for peripheral-to-peripheral connections, the PPS helps enable complex functions, simplifies legacy system migration and provides optimized PCB tracing for improved board space usage and highest signal integrity for designs that require it.

**Key Attributes:

* **32 MHz Internal Oscillator

**

* **Up to 28 KB Self-Write Program Memory

* To 2 KB RAM

**

* **Op Amps

**

* **Zero Cross Detect ZCD

**

* **Up to Two High-Speed Comparators

**

* **10-bit ADC, up to 28 channels

**

* **5-/8-bit DAC

**

* **Up to Four Configurable Logic Cells CLC

**

* **Complementary Output Generator COG

**

* **Numerically Controlled Oscillator NCO

**

* **Up to Two 10-bit PWM modules

**

* **EUSART, SPI, and I2C™

**

* **mTouch™ Capacitive Sensing

**

* **eXtreme Low Power XLP Technology

**

* **Available in 14, 20, 28 and 40/44 pins
