; Silicon Manufacturer: Microchip; Core Architecture: PIC; Features: I2C EEPROM Socket, USB to RS232 FT232 Converter;...

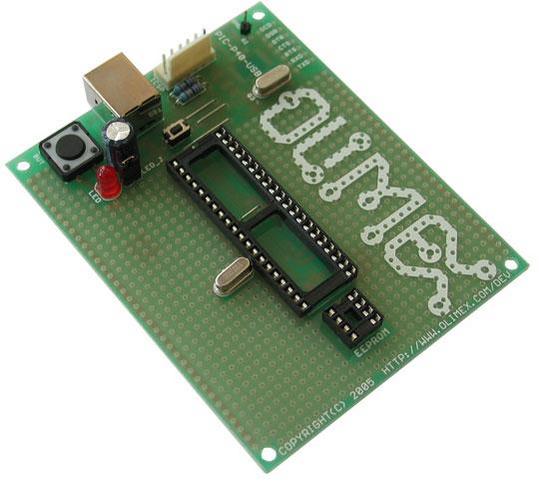

The is a ICSP/ICD enabled 40pin PIC microcontroller prototype board with USB. This board was designed to allow easy interfacing of embedded projects to computers with USB. F232 USB to RS 232 converter IC creates virtual COM port to the PC and you can easily send and receive date using the good old fashioned RS 232 interface in the PIC microcontroller. The on board ICSP connector allow you to program the PIC on the board without pulling it of the socket, by ICSP programmer like PICMCP, PIC-MCP-USB, PIC-PG1, PIC-PG2, PIC-PG3, PIC-PG4 or to program and debug it with PIC-ICD2, PIC-ICD2-POCKET or PIC-ICD2-TINY.
- .
- USB to RS 232 FT232 converter
- .
- I2C EEPROM socket
- .
- Takes power from USB no need for external adapter
- .
- Power supply filtering capacitors
- .
- Quartz crystal oscillator circuit 20MHz
- .
- General purpose push button connected to RE2
- .
- Status LED connected to RE1 via removable jumper
- .
- DIL40 microcontroller socket
- .
- Extension pin headers for each uC pin
- .
- Board size available with 100mm x 80mm
All programmers provide power supply through ICSP connector during the programming PIC-P40-USB should not be connected to USB. Of course PIC-ICD2 have option to not power the target circuit.
