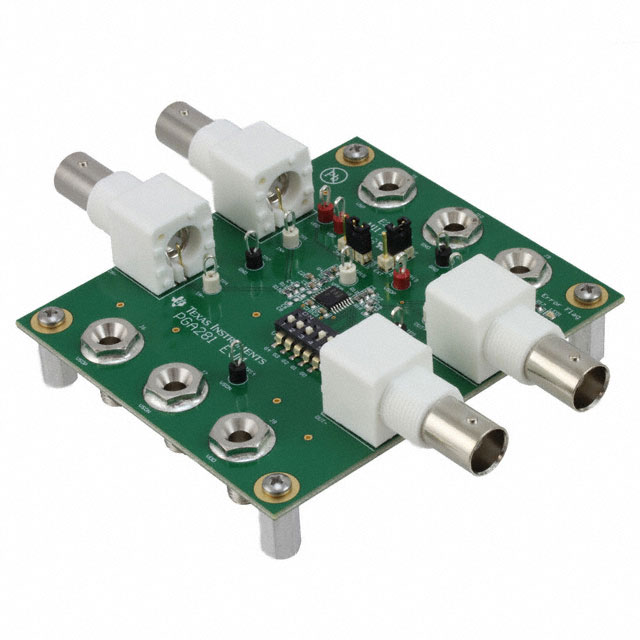

评估模块, 用于PGA281零漂移, 高电压可编程增益放大器
The provides basic functional evaluation of the PGA281, a high precision instrumentation amplifier with pin programmable gain, attenuation, and error detection. The PGA281 offers low offset voltage, near zero drift, and very low 1/f noise for high-resolution, precision measurement. The high supply voltage and excellent common mode rejection comply with the requirements for universal industrial signal front ends.
-
.
-
Onboard power management circuitry generates all required power supply
-
.
-
DIP switch allows easy setting of pin programmable gain
-
.
-
Error flag LED provides visual feedback of any detected error condition
-
.
-
Easy access to pertinent nodes with test points, BNC connectors, and banana jacks
-
.
-
Component footprints allow multiple filtering configurations
-
.
-
High input impedance
-
.
-
Very low 1/f noise
-
.
-
Differential signal output
-
.
-
1.5ppm excellent linearity
