PESD2CAN

NXP  PESD2CAN  静电保护装置, TVS, 41 V, SOT-23, 3 引脚

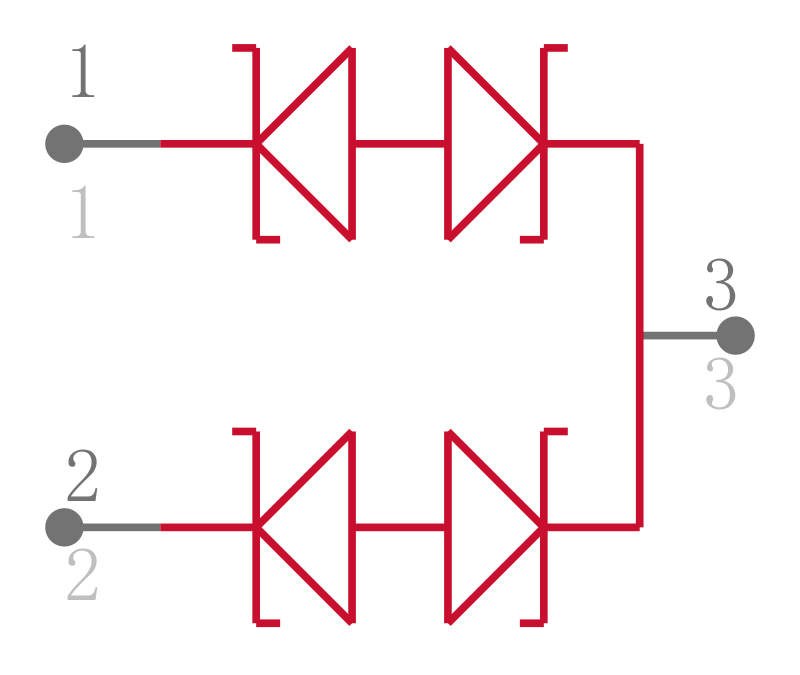

The from is a CAN bus ESD protection diode in 3pin SOT-23 package. This device is designed to protect two automotive CAN Controller Area Network bus lines from damage caused by ESD and other transients. The PESD2CAN can be used for both high speed CAN bus and fault tolerant CAN bus protection.

.

Automotive grade AEC-Q101 qualified

.

Maximum peak pulse power Ppp of 230W at tp=8/20µs

.

Low clamping voltage VCL of 41V at Ipp=5A

.

Ultra low leakage current IRM of less than 1nA

.

ESD protection up to 30KV according to IEC 61000-4-2 level 4 ESD

.

Rated peak pulse current Ippm of 5A according to IEC 61000-4-5 surge at tp=8/20µs

.

Reverse standoff voltage Vrwm of 24V

.

Diode capacitance Cd of 25pF at f=1MHz and VR=0V

.

Ambient temperature range from -55°C to 150°C

.

Breakdown voltage Vbr of 28V at IR=1mA
