NXP PESD5V0S4UD 静电保护装置, TVS, 13 V, SSOT-6, 6 引脚
The is a quadruple ESD Protection Diode Array designed to protect up to 4 signal lines from the damage caused by ESD and other transients.
- .
- ESD protection of up to 4 lines
- .
- ESD protection up to 30kV
- .
- 200W Maximum peak pulse power PPP
- .
- 50pA Ultra low leakage current IRM
击穿电压 6.80 V
针脚数 6
钳位电压 13 V
安装方式 Surface Mount
引脚数 6

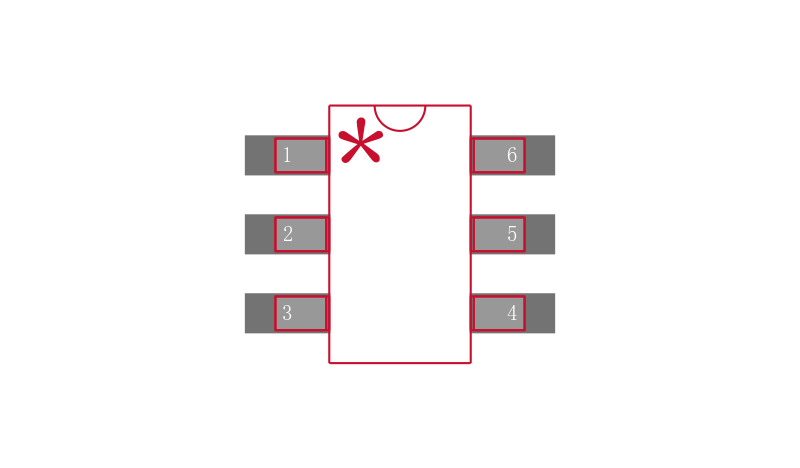

封装 SSOT-6
封装 SSOT-6
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Computers & Computer Peripherals, Consumer Electronics, Industrial, Portable Devices, Communications & Networking, Audio, Imaging, Video & Vision
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PESD5V0S4UD NXP 恩智浦 | 当前型号 | 当前型号 |
SP0504BAJTG 力特 | 功能相似 | PESD5V0S4UD和SP0504BAJTG的区别 |
