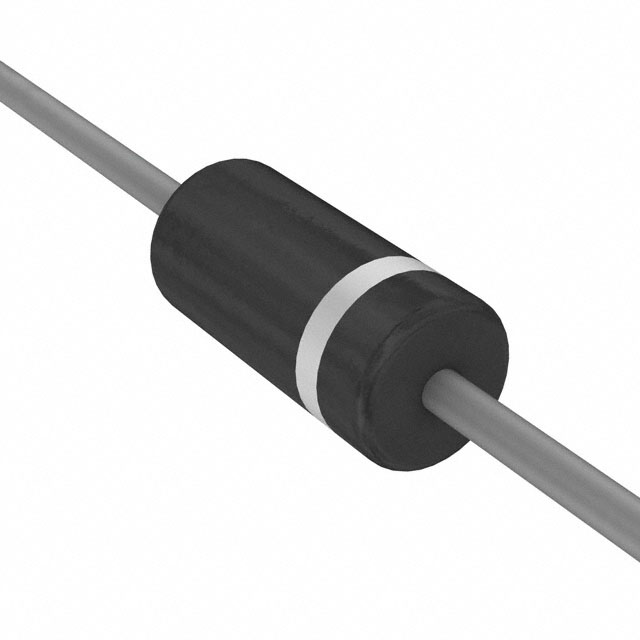

P6KE18A-E3/54

TRANSZORB® 瞬态电压抑制器轴向单向 600W，Vishay Semiconductor### 瞬态电压抑制器，Vishay Semiconductor

**Features: **

* Glass Passivated Chip Junction

* Available in Uni-Directional and Bi-Directional

* 600 W Peak Pulse Power Capability with a 10/1000 μs Waveform, Repetitive Rate Duty Cycle: 0.01%

* Excellent Clamping Capability

* Very Fast Response Time

* Low Incremental Surge Resistance

* Solder Dip 260°C, 40 s

* Component in Accordance to RoHS 2002/95/EC and WEEE 2002/96/EC **Applications: **Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
