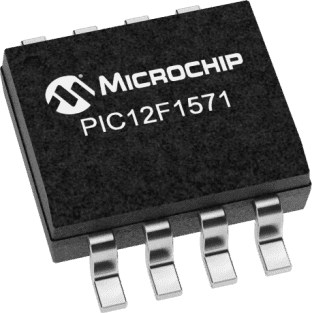

PIC12F1571T-I/SN

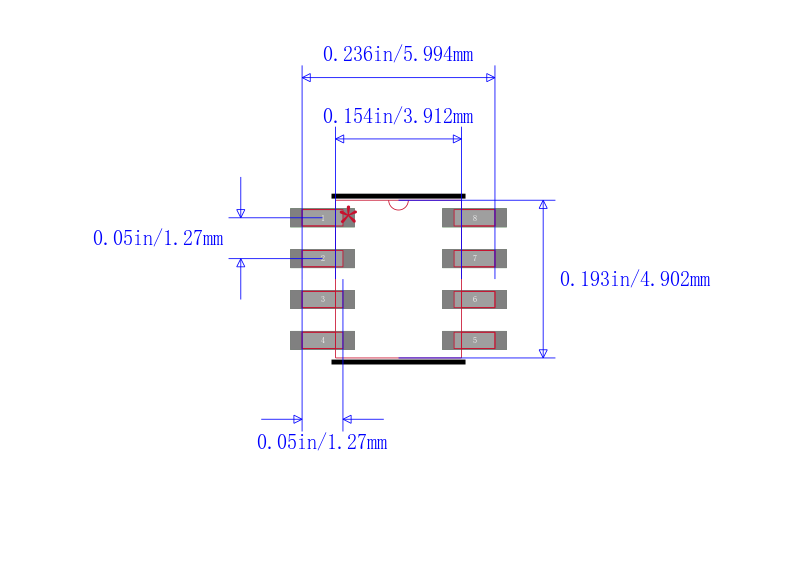

PIC12F 系列 1.75 kB 闪存 128 字节 SRAM 表面贴装 8-位 微控制器 - SOIC-8

PIC12LF157X microcontrollers combine the capabilities of 16-bit PWMs with Analog to suit a variety of applications. These devices deliver three 16-bit PWMs with independent timers, for applications where high resolution is needed, such as LED lighting, stepper motors, power supplies and other general-purpose applications. The core independent peripherals 16-bit PWMs, Complementary Waveform Generator, Enhanced Universal Synchronous Asynchronous Receiver Transceiver and Intelligent Analog ADCs, Comparator and DAC enable closed loop feedback and communication for use in multiple market segments, such as LIN and DMX applications.

**Features:**

* Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels

* Flash Program Memory with self read/write capability

* 128 Bytes of Non-Volatile Data Storage, High-Endurance Flash HEF

* Internal clock speeds from 31 kHz to 32 MHz

* 3x Standalone 16-bit PWMs

* Complementary Waveform Generator CWG

* 4 Channel 10-bit ADC with Voltage Reference

* 5-bit Digital to Analog Converter DAC

* Comparator

* 2x 8-bit Timers TMR0/TMR2

* 1x 16-bit Timer TMR1

* EUSART

* Three additional 16-bit Timers available using the 16-bit PWMs

* Extended Watchdog Timer WDT

* Enhanced Power-On/Off-Reset

* Low-Power Brown-Out Reset LPBOR

* Programmable Brown-Out Reset BOR

* In Circuit Serial Programming ICSP

* PIC12LF1572 1.8 V – 3.6 V

* PIC12F1572 2.3 V – 5.5 V
