远程8位I2C和SMBus低功耗I / O扩展器,带有中断输出和配置寄存器 REMOTE 8-BIT I2C AND SMBus LOW-POWER I/O EXPANDER WITH INTERRUPT OUTPUT AND CONFIGURATION REGISTERS
DESCRIPON/ORDERING INFORMATION
This 8-bit I/O expander for the two-line bidirectional bus I2C is designed for 2.3-V to 5.5-V VCC
operation. It provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface [serial clock SCL, serial data SDA]. The PCA9534 consists of one 8-bit Configuration input or output selection, Input Port, Output Port, and Polarity Inversion active high or active low register. At power on, the I/Os are configured as inputs. However, the system master can enable the I/Os as either inputs or outputs by writing to the I/O configuration bits. The data for each input or output is kept in the corresponding Input or Output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.
FEATURES
• Low Standby Current Consumption of 1 µA Max
• I2C to Parallel Port Expander
• Open-Drain Active-Low Interrupt Output
• Operating Power-Supply Voltage Range of 2.3 V to 5.5 V
• 5-V Tolerant I/O Ports
• 400-kHz Fast I2C Bus
• Three Hardware Address Pins Allow up to Eight Devices on the I2C/SMBus
• Input/Output Configuration Register
• Polarity Inversion Register
• Internal Power-On Reset
• Power-Up With All Channels Configured as Inputs
• No Glitch on Power-Up
• Noise Filter on SCL/SDA Inputs
• Latched Outputs With High-Current Drive Maximum Capability for Directly Driving LEDs
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
电源电压DC 2.30V ~ 5.50V
输出接口数 8
针脚数 16
时钟频率 400 kHz
电压波节 2.70 V, 3.30 V, 3.60 V, 5.00 V
输入/输出数 8 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 16

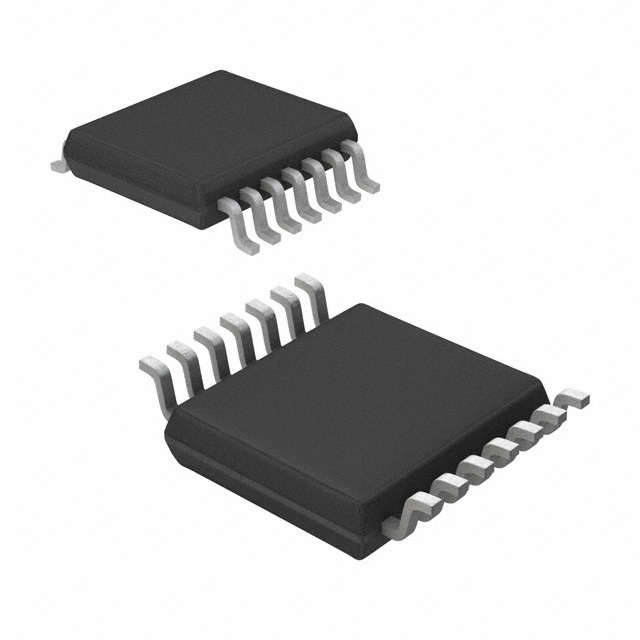

封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PCA9534PWR TI 德州仪器 | 当前型号 | 当前型号 |
PCA9557PWR 德州仪器 | 完全替代 | PCA9534PWR和PCA9557PWR的区别 |
PCA9534PW 德州仪器 | 完全替代 | PCA9534PWR和PCA9534PW的区别 |
PCA9554DB 德州仪器 | 完全替代 | PCA9534PWR和PCA9554DB的区别 |
