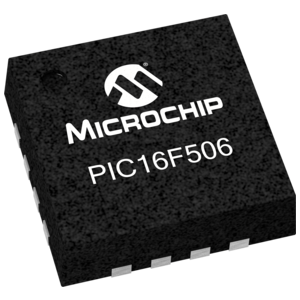

PIC16F506-E/MG

PIC 20MHz 闪存：1K@x12bit

The peripheral-rich 8-bit The

.

*PIC microcontrollers** offer the best price/performance ratio in the industry, with Flash, one-time-programmable and ROM program memory options. Based on a powerful RISC core, these families feature a common architecture for easy migration from 6 to 100 pins with little or no code change required. The PIC microcontrollers featuring ’s Mid-Range 14-bit program word architecture are available in higher pin count packages with Flash and OTP program memory options. The Flash products offer an operating voltage range of 2.0 V to 5.5 V, small package footprints, interrupt handling, a deeper hardware stack, multiple A/D channels and EEPROM data memory. All of these features provide the Mid-Range microcontrollers with an intelligence level not previously available because of cost or size considerations.

**Features:**

* Standard Flash Memory

* 1 μs Instruction Execution

* 35 Instructions

* 25 mA Source and Sink Per I/O

* ICSP™ In-Circuit Serial Programming™

* 1-8-Bit, 1-16-Bit and 1 WD Timer PIC12F683 1-16 Bit, 2- 8-Bit and 1 WDT

* .0-5.5 V Operating Range
