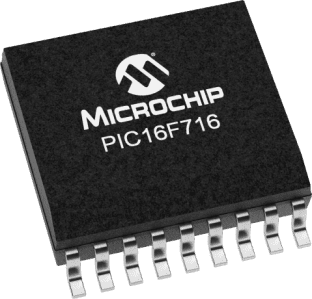

8位微控制器 -MCU 3.5KB 128 RAM 13 I/O
Microcontroller Core Features:
• High-performance RISC CPU
• Only 35 single-word instructions to learn
\- All single-cycle instructions except for program branches which are two-cycle
• Operating speed: DC – 20 MHz clock input
DC – 200 ns instruction cycle
• Interrupt capability up to 7 internal/external interrupt sources
• 8-level deep hardware stack
• Direct, Indirect and Relative Addressing modes
Special Microcontroller Features:
• Power-on Reset POR
• Power-up Timer PWRT and Oscillator Start-up Timer OST
• Watchdog Timer WDT with its own on-chip RC oscillator for reliable operation
• Dual level Brown-out Reset circuitry
\- 2.5 VBOR Typical
\- 4.0 VBOR Typical
• Programmable code protection
• Power-Saving Sleep mode
• Selectable oscillator options
• Fully static design
• In-Circuit Serial Programming™ ICSP™
CMOS Technology:
• Wide operating voltage range:
\- Industrial: 2.0V to 5.5V
\- Extended: 3.0V to 5.5V
• High Sink/Source Current 25/25 mA
• Wide temperature range:
\- Industrial: -40°C to 85°C
\- Extended: -40°C to 125°C
电源电压DC 5.00 V, 5.50 V max
时钟频率 20.0MHz max
RAM大小 128 x 8
耗散功率 1000 mW
I/O引脚数 13
存取时间 20.0 µs
内核架构 PIC
模数转换数ADC 1
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 18
封装 SOIC-18
长度 11.53 mm
宽度 7.49 mm
高度 2.31 mm
封装 SOIC-18
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC16F716T-E/SO Microchip 微芯 | 当前型号 | 当前型号 |
PIC16F716-I/SO 微芯 | 类似代替 | PIC16F716T-E/SO和PIC16F716-I/SO的区别 |
PIC16F716T-I/SO 微芯 | 类似代替 | PIC16F716T-E/SO和PIC16F716T-I/SO的区别 |
PIC16F716-E/SO 微芯 | 类似代替 | PIC16F716T-E/SO和PIC16F716-E/SO的区别 |
