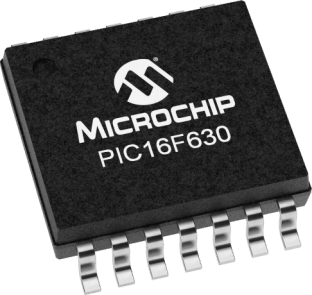

14引脚基于闪存的8位CMOS微控制器 14-Pin FLASH-Based 8-Bit CMOS Microcontrollers
This document contains device specific information for the PIC16F630/676. Additional information may be found in the PIC® Mid-Range Reference Manual DS33023, which may be obtained from your local Sales Representative or downloaded from the Microchip web site. The Reference Manual should be considered a complementary document to this DataSheet and is highly recommended reading for a better understanding of the device architecture and operation of the peripheral modules.
电源电压DC 5.00 V, 5.50 V max
时钟频率 20.0MHz max
RAM大小 64 B
位数 8
I/O引脚数 12
存取时间 20.0 µs
内核架构 PIC
内核子架构 PIC16
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 800 mW
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
封装 TSSOP-14
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PIC16F630T-E/ST Microchip 微芯 | 当前型号 | 当前型号 |
PIC16F630-I/P 微芯 | 类似代替 | PIC16F630T-E/ST和PIC16F630-I/P的区别 |
PIC16F630-I/ST 微芯 | 类似代替 | PIC16F630T-E/ST和PIC16F630-I/ST的区别 |
PIC16F630-E/SL 微芯 | 类似代替 | PIC16F630T-E/ST和PIC16F630-E/SL的区别 |
