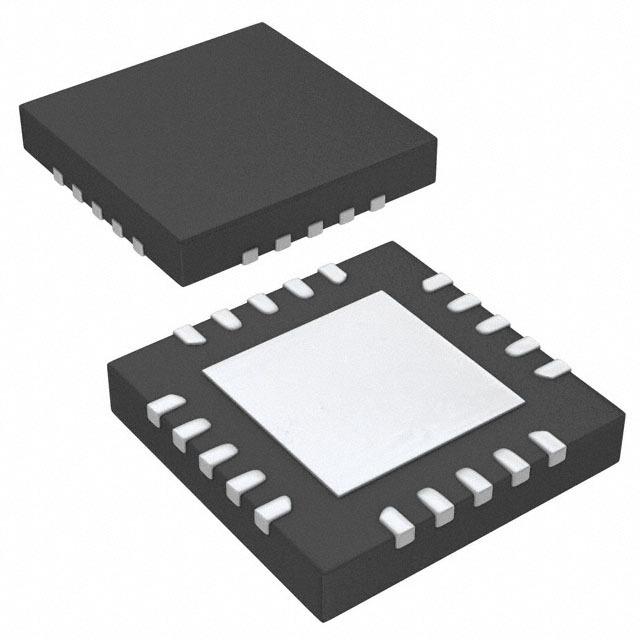

MCU 8Bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive 20Pin QFN EP
PIC series IC 8 位 32MHz 7KB（4K x 14） 闪存 20-QFN（4x4）
得捷:
IC MCU 8BIT 7KB FLASH 20QFN
立创商城:
PIC16F1828-E/ML
艾睿:
This PIC16F1828-E/ML microcontroller from Microchip Technology will make your CPU more versatile and quick. This microcontroller has an operating temperature range of -40 °C to 125 °C. It has a maximum clock speed of 32 MHz. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2.3 V, while its maximum is 5.5 V. This is a 8 bit processor. Its ADC resolution is 10. This device is based on the PIC core architecture. Its flash program memory is 7KB.
Allied Electronics:
7 KB Flash, 256 Bytes RAM, 32MHz Internal OSC, 18 I/0, Enhanced Mid Range Core
安富利:
MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 20-Pin QFN EP
Chip1Stop:
MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive 20-Pin QFN EP
Win Source:
IC MCU 8BIT 7KB FLASH 20QFN / PIC series Microcontroller IC 8-Bit 32MHz 7KB 4K x 14 FLASH 20-QFN 4x4
工作电压 1.8V ~ 5.5V
RAM大小 256 x 8
位数 8
耗散功率 800 mW
FLASH内存容量 7 KB
模数转换数ADC 1
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 800 mW
电源电压 2.3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 20
封装 QFN-20
长度 4 mm
宽度 4 mm
高度 0.95 mm
封装 QFN-20
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PIC16F1828-E/ML Microchip 微芯 | 当前型号 | 当前型号 |
PIC16F1828-E/SS 微芯 | 功能相似 | PIC16F1828-E/ML和PIC16F1828-E/SS的区别 |
PIC16F1828T-I/SS 微芯 | 功能相似 | PIC16F1828-E/ML和PIC16F1828T-I/SS的区别 |
PIC16F1828T-E/ML 微芯 | 功能相似 | PIC16F1828-E/ML和PIC16F1828T-E/ML的区别 |
