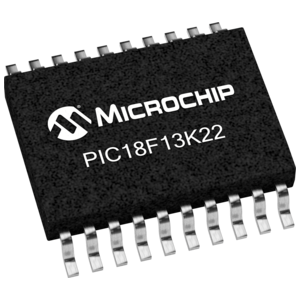

PIC18LF13K22-E/SS图片1
PIC18LF13K22-E/SS图片2
PIC18LF13K22-E/SS图片3
PIC18LF13K22-E/SS图片4

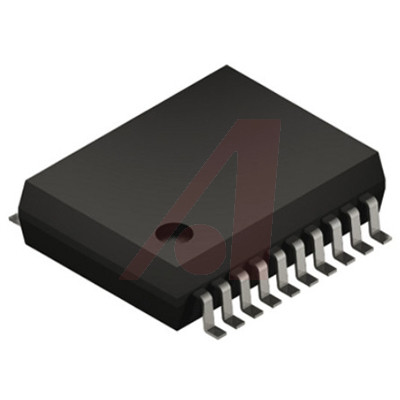

PIC18LF13K22-E/SS图片5
PIC18LF13K22-E/SS图片6

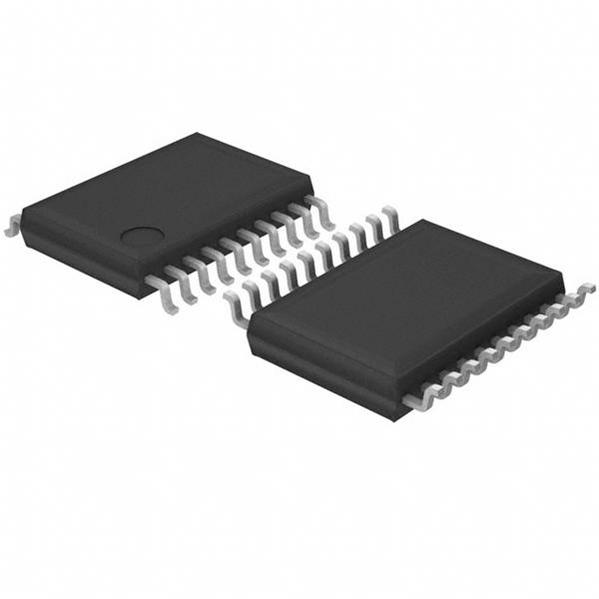

PIC18LF13K22-E/SS图片7
PIC18LF13K22-E/SS图片8

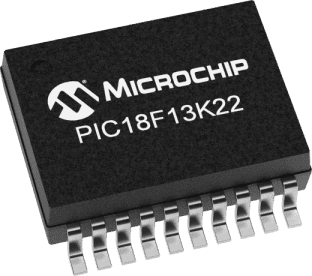

PIC18LF13K22-E/SS图片9
PIC18LF13K22-E/SS图片10
PIC18LF13K22-E/SS概述

20引脚闪存单片机采用nanoWatt XLP技术 20-Pin Flash Microcontrollers with nanoWatt XLP Technology

This family offers the advantages of all PIC18 microcontrollers – namely, high computational performance with the addition of high-endurance, Flash program memory. On top of these features, the PIC18F1XK22/LF1XK22 family introduces design enhancements that make these microcontrollers a

logical choice for many high-performance, power sensitive applications.


得捷:
IC MCU 8BIT 8KB FLASH 20SSOP


立创商城:
PIC 48MHz 闪存:4K@x16bit


艾睿:
MCU 8-bit PIC18 PIC RISC 8KB Flash 2.5V/3.3V 20-Pin SSOP


Allied Electronics:
8KB Flash, 256bytes RAM, 256bytes EEPROM, 16MIPS, nanoWatt XLP


安富利:
MCU 8-bit PIC18 PIC RISC 8KB Flash 2.5V/3.3V 20-Pin SSOP


Chip1Stop:
MCU 8-bit PIC18 PIC RISC 8KB Flash 2.5V/3.3V 20-Pin SSOP


PIC18LF13K22-E/SS中文资料参数规格
技术参数

RAM大小 256 x 8

位数 8

耗散功率 800 mW

FLASH内存容量 8 KB

模数转换数ADC 1

工作温度Max 125 ℃

工作温度Min -40 ℃

耗散功率Max 800 mW

封装参数

安装方式 Surface Mount

引脚数 20

封装 SSOP-20

外形尺寸

封装 SSOP-20

物理参数

工作温度 -40℃ ~ 125℃

其他

产品生命周期 Unknown

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

PIC18LF13K22-E/SS引脚图与封装图

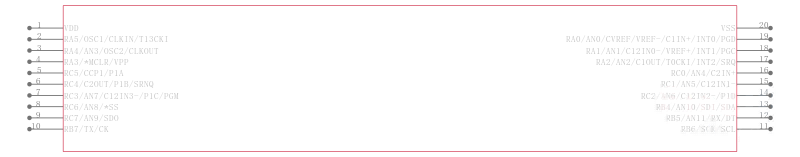

PIC18LF13K22-E/SS引脚图

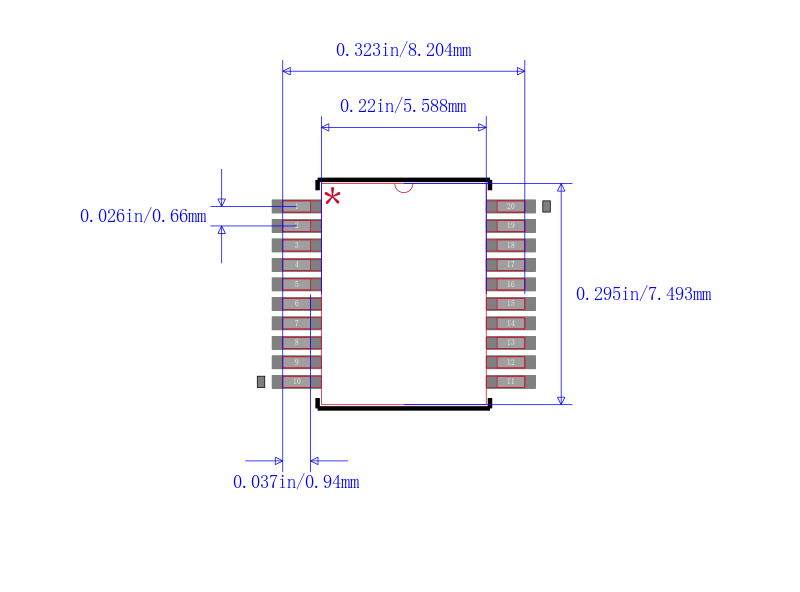

PIC18LF13K22-E/SS封装图

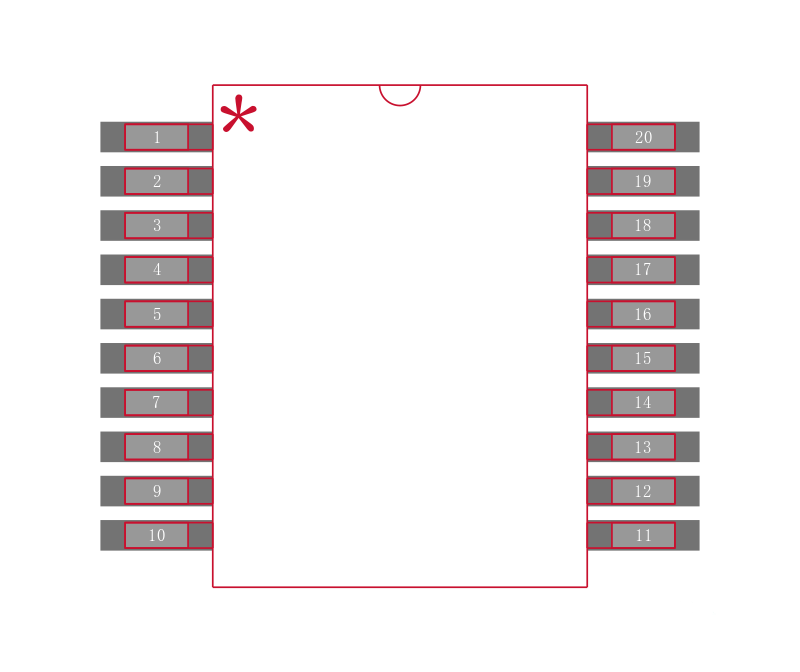

PIC18LF13K22-E/SS封装焊盘图
在线购买PIC18LF13K22-E/SS
型号: PIC18LF13K22-E/SS
制造商: Microchip 微芯
描述:20引脚闪存单片机采用nanoWatt XLP技术 20-Pin Flash Microcontrollers with nanoWatt XLP Technology
