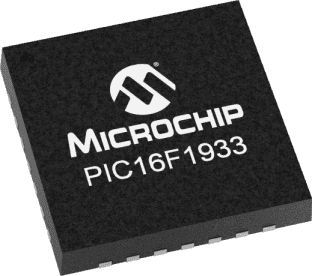

28 /40/ 44引脚基于闪存的8位CMOS微控制器与LCD驱动器和纳瓦技术 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers with LCD Driver and nanoWatt Technology
PIC series IC 8 位 32MHz 7KB(4K x 14) 闪存 28-QFN(6x6)
得捷:
IC MCU 8BIT 7KB FLASH 28QFN
立创商城:
PIC 32MHz 闪存:4K@x14bit
艾睿:
With the PIC16F1933T-I/ML microcontroller by Microchip Technology, many functions and tasks can be automated to a developer&s;s desired specifications. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 32 MHz. Its ADC resolution is 10. This device is based on the PIC core architecture. This is a 8 bit processor. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 1.8 V, while its maximum is 5.5 V. Its flash program memory is 7KB.
Allied Electronics:
7KB Flash, 256B RAM, 256B EEPROM, LCD, 1.8-5.5V28 QFN 6x6x0.9mm T/R
安富利:
MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 28-Pin QFN EP T/R
Chip1Stop:
MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 28-Pin QFN EP T/R
儒卓力:
**PIC16F 7K QFN28 85°C **
RAM大小 256 B
位数 8
耗散功率 800 mW
FLASH内存容量 7 KB
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 800 mW
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 28
封装 QFN-28
宽度 6 mm
封装 QFN-28
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 3A991.a.2
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC16F1933T-I/ML Microchip 微芯 | 当前型号 | 当前型号 |
PIC16F1933-I/ML 微芯 | 完全替代 | PIC16F1933T-I/ML和PIC16F1933-I/ML的区别 |
