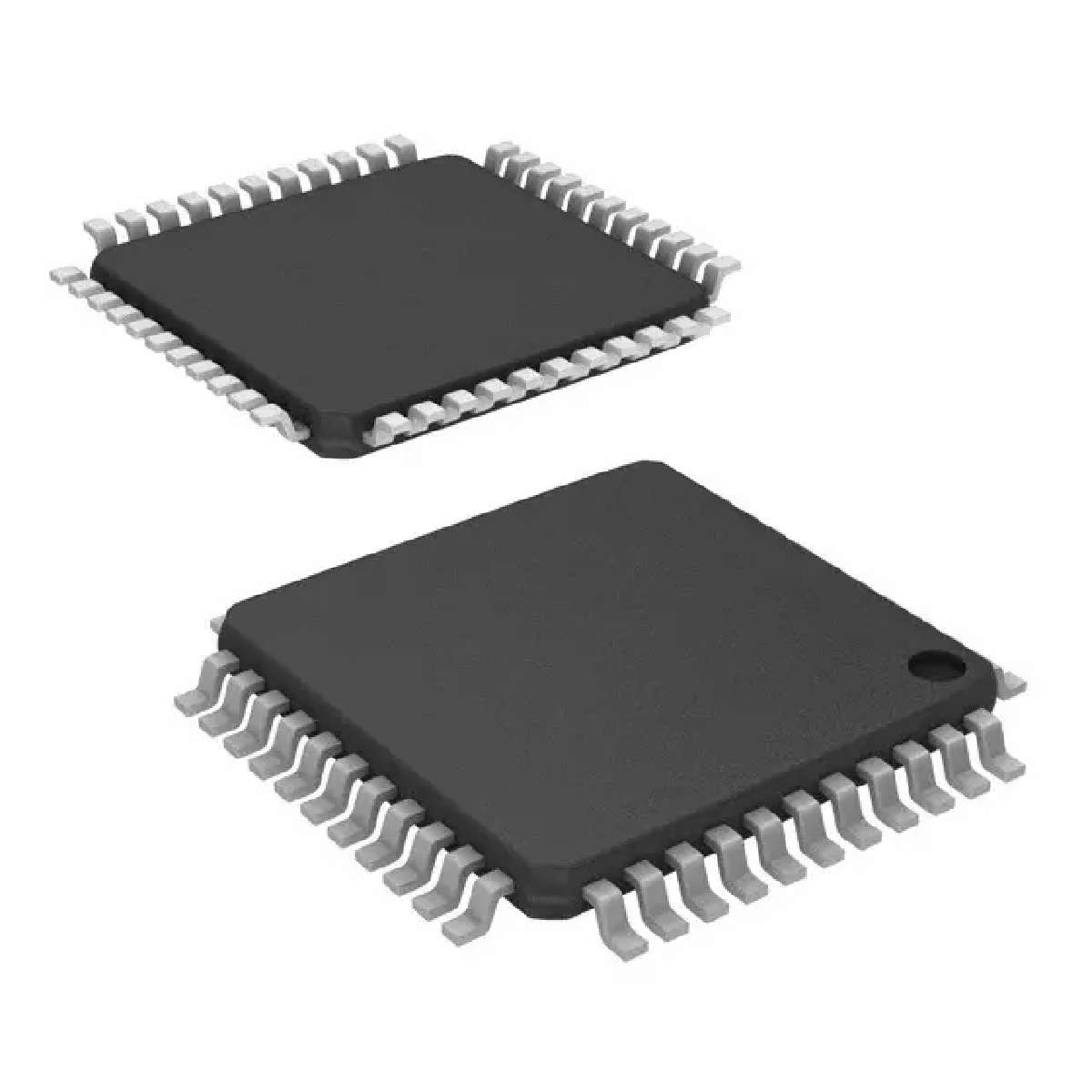

PIC16 8位 微控制器 带4 KB闪存 采用44引脚TQFP封装
DEVICE OVERVIEW
The PIC16F72X/PIC16LF72X devices are covered by this data sheet. They are available in 28/40/44-pin packages. Figure 1-1 shows a block diagram of the PIC16F722/723/726/PIC16LF722/723/726 devices
and Figure 1-2 shows a block diagram of the PIC16F724/727/PIC16LF724/727 devices. Table 1-1
shows the pinout descriptions.
得捷:
IC MCU 8BIT 7KB FLASH 44TQFP
立创商城:
PIC16F724T-I/PT
贸泽:
8位微控制器 -MCU 7KB 18V-55V 16MHz Internal Oscillator
艾睿:
In order to make your CPU more versatile use this fantastic PIC16F724T-I/PT microcontroller from Microchip Technology. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 20 MHz. Its eprom program memory is 7KB. Its ADC resolution is 8. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2.3 V, while its maximum is 5.5 V. This device is based on the PIC core architecture. This is a 8 bit processor.
Allied Electronics:
MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 44-Pin TQFP T/R
安富利:
MCU 8-bit PIC16 PIC RISC 7KB Flash 2.5V/3.3V/5V 44-Pin TQFP T/R
Verical:
MCU 8-bit PIC RISC 7KB Flash 2.5V/3.3V/5V Automotive 44-Pin TQFP T/R
频率 20 MHz
RAM大小 192 B
位数 8
耗散功率 800 mW
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 800 mW
电源电压 1.8V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 44
封装 TQFP-44
长度 10 mm
宽度 10 mm
高度 1 mm
封装 TQFP-44
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC16F724T-I/PT Microchip 微芯 | 当前型号 | 当前型号 |
PIC16F724-I/PT 微芯 | 类似代替 | PIC16F724T-I/PT和PIC16F724-I/PT的区别 |
