28 /40/ 44引脚,低功耗,高性能的微控制器采用nanoWatt XLP技术 28/40/44-Pin, Low-Power, High-Performance Microcontrollers with nanoWatt XLP Technology
PIC series IC 8 位 64MHz 8KB(4K x 16) 闪存 28-QFN(6x6)
得捷:
IC MCU 8BIT 8KB FLASH 28QFN
立创商城:
PIC 64MHz 闪存:4K@x16bit
艾睿:
Microchip Technology&s;s PIC18LF23K22-I/ML microcontroller can essentially eliminate certain components and speed up simple tasks within your circuit. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 64 MHz. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 1.8 V, while its maximum is 3.6 V. This device is based on the PIC core architecture. This is a 8 bit processor. Its flash program memory is 8KB. Its ADC resolution is 10.
Allied Electronics:
8KB, Flash, 768Bytes-RAM, 8-Bit nanoWattXLP, QFN-28 6X6mm TUBE
Chip1Stop:
MCU 8-bit PIC18 PIC RISC 8KB Flash 2.5V/3.3V 28-Pin QFN EP Tube
Verical:
MCU 8-bit PIC RISC 8KB Flash 2.5V/3.3V 28-Pin QFN EP Tube
儒卓力:
**PIC18LF 8K QFN28 85°C **
Online Components:
MCU 8-bit PIC18 PIC RISC 8KB Flash 2.5V/3.3V 28-Pin QFN EP Tube
DeviceMart:
IC PIC MCU 8KB FLASH 28QFN
频率 64 MHz
工作电压 1.8V ~ 3.6V
RAM大小 512 B
位数 8
FLASH内存容量 8 KB
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 28

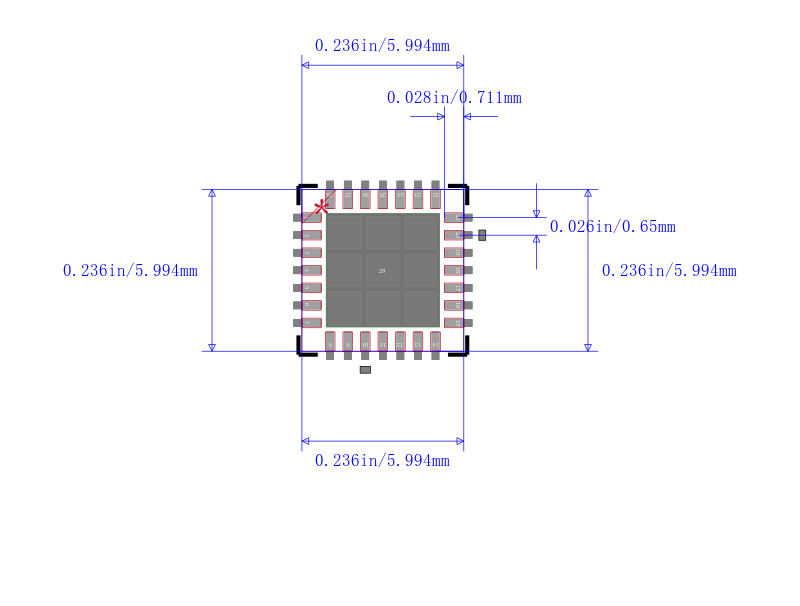

封装 QFN-28
长度 6 mm
宽度 6 mm
高度 0.95 mm
封装 QFN-28
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC18LF23K22-I/ML Microchip 微芯 | 当前型号 | 当前型号 |
PIC18LF23K22T-I/ML 微芯 | 类似代替 | PIC18LF23K22-I/ML和PIC18LF23K22T-I/ML的区别 |
