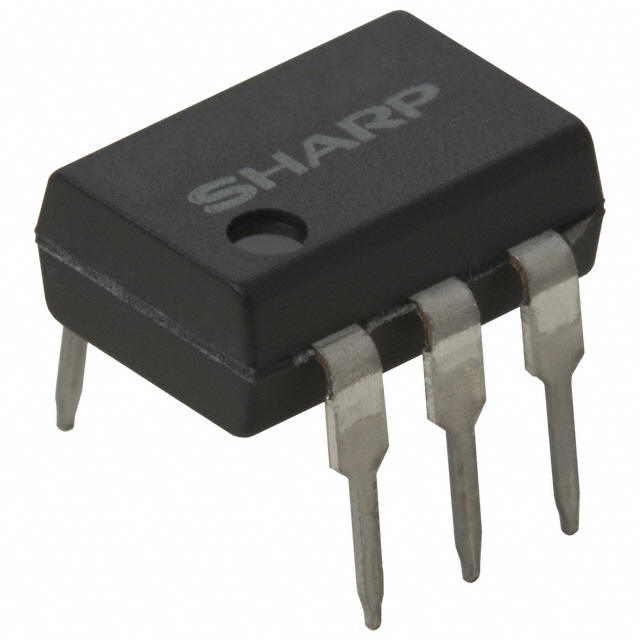

PR32MA11NTZF概述
固态继电器, PR32MA11NTZ系列, Non-Zero Cross, 150 mA, 电路板, 通孔安装, 非零交叉
The PR32MA11NTZ series Solid State Relay SSR is an integration of an infrared emitting diode IRED, a phototriac detector. This device is ideally suited for controlling high voltage AC loads with solid state reliability while providing 5kV isolation Visorms from input to output.
- .
- Non-zero crossing functionary
- .
- Double transfer mould construction Ideal for flow soldering
- .
- * High repetitive peak OFF-state voltage VDRM - 600V
- .
- High isolation voltage between input and output
- .
- 100µs Maximum response time
- .
- Superior noise immunity Minimum 100V/µs dV/dt
PR32MA11NTZF中文资料参数规格
技术参数
输入电压DC 1.40 V
触点类型 SPST-NO
负载电流 150 mA
输入电流 0.1 mA
输入电压Max 1.4 V
输出电压Max 600 V
输入电流Min 50 mA
工作温度Max 85 ℃
工作温度Min -30 ℃
输入电压 1.2 VDC
封装参数
安装方式 Through Hole
引脚数 5
封装 DIP-6
外形尺寸
封装 DIP-6
其他
产品生命周期 Active
包装方式 Tube
制造应用 照明, Industrial, 热管理, Motor Drive & Control, 电机驱动与控制, HVAC, Thermal Management, Lighting, 工业
符合标准
RoHS标准 RoHS Compliant
含铅标准 Lead Free
