零漂移高电压可编程增益仪表放大器 Zero-Drift High-Voltage Programmable Gain INSTRUMENTATION AMPLIFIER
Filter out undesirable noise and amplify important data within a radio signal by using the preamplifier from Texas Instruments! Get the most of your integrated circuits by using this PGA280AIPWR OP amp circuits from Texas Instruments. This part has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components.
供电电流 2.4 mA
电路数 1
通道数 4
共模抑制比 130.46 dB
静态电流 3.00 mA
转换速率 1.00 V/μs
增益频宽积 6 MHz
输入补偿电压 0.25 mV
输入偏置电流 800 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 30V ~ 50V
电源电压Min 10 V
安装方式 Surface Mount

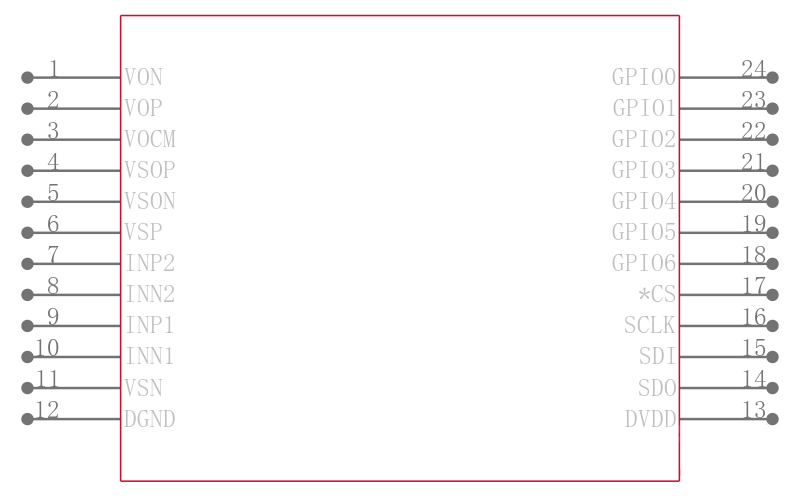

引脚数 24

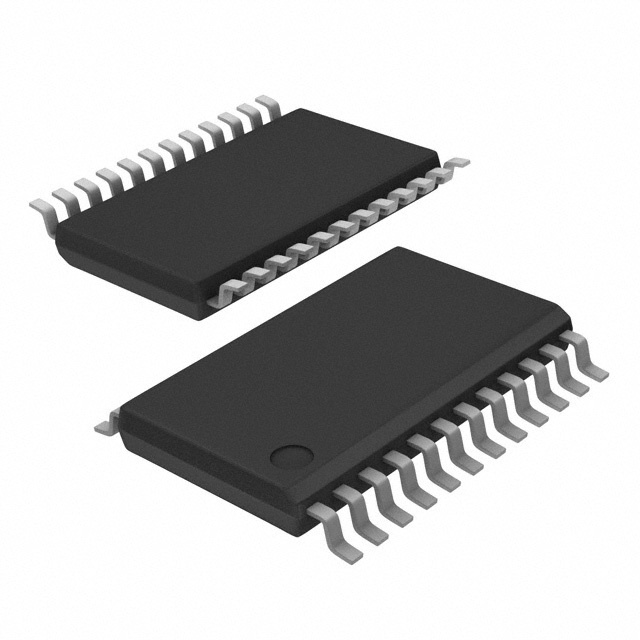

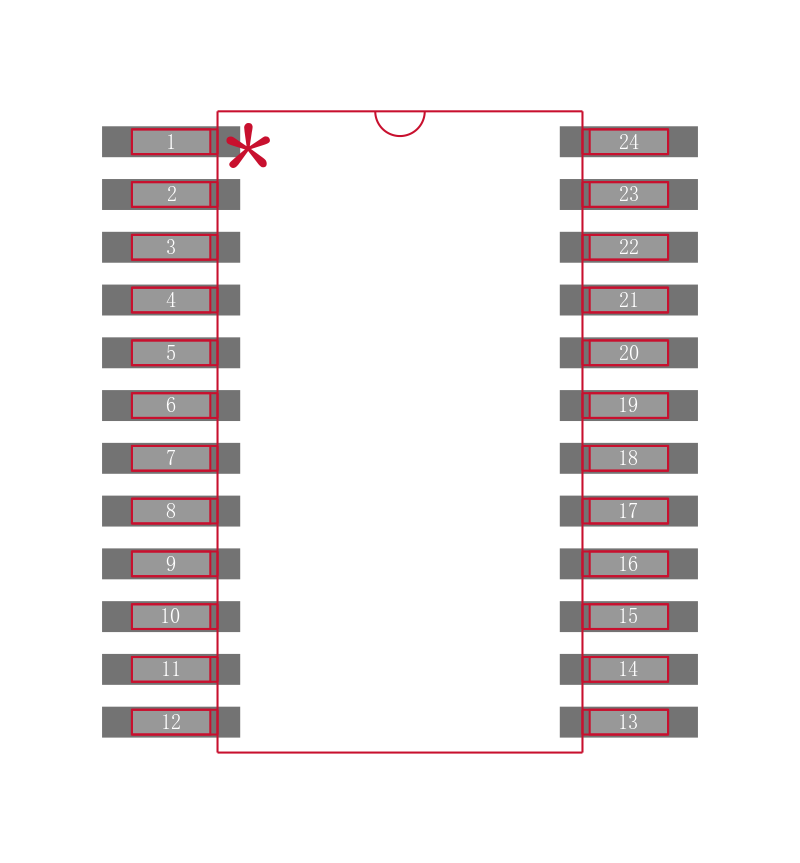

封装 TSSOP-24

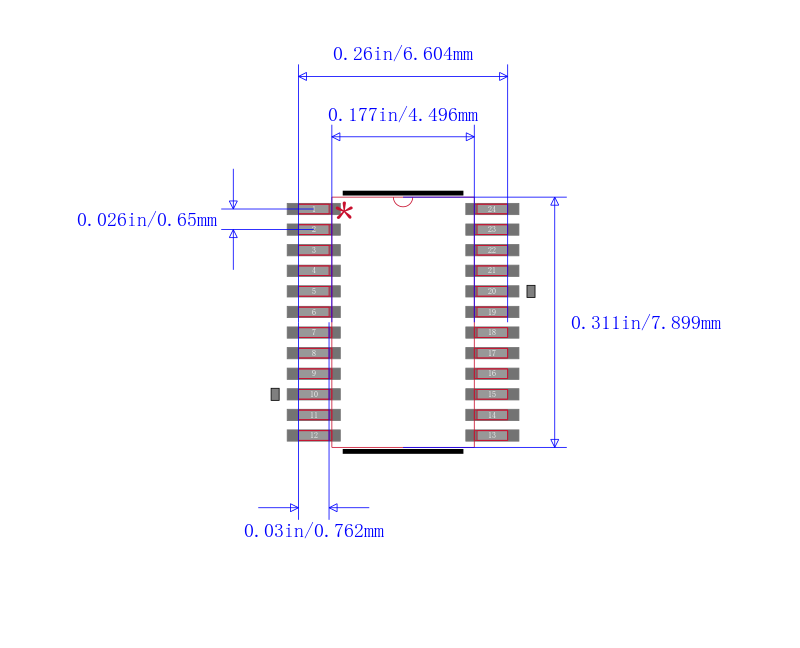

长度 7.8 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-24
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PGA280AIPWR TI 德州仪器 | 当前型号 | 当前型号 |
PGA280AIPW 德州仪器 | 类似代替 | PGA280AIPWR和PGA280AIPW的区别 |
