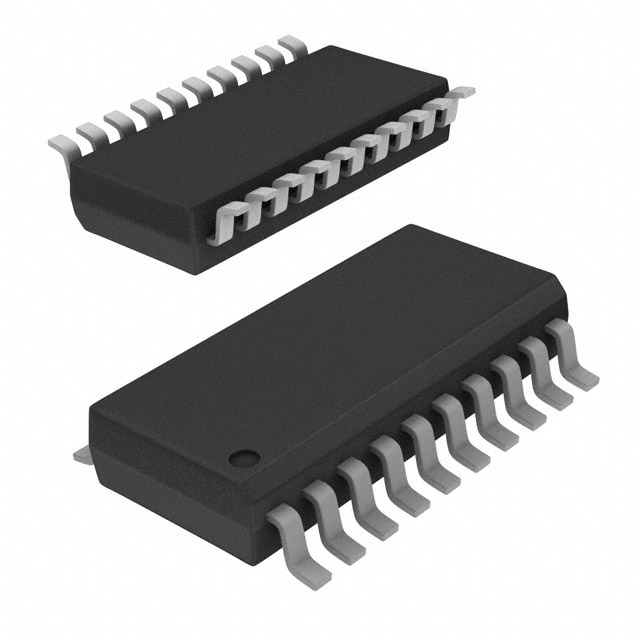

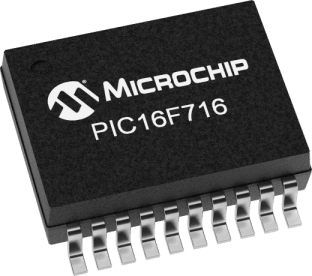

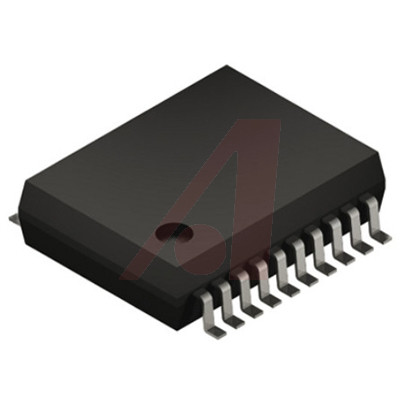

PIC16F716-E/SS

8位微控制器 -MCU 3.5KB 128 RAM 13 I/O

Microcontroller Core Features:

• High-performance RISC CPU

• Only 35 single-word instructions to learn

\- All single-cycle instructions except for program branches which are two-cycle

• Operating speed: DC – 20 MHz clock input

                         DC – 200 ns instruction cycle

• Interrupt capability up to 7 internal/external interrupt sources

• 8-level deep hardware stack

• Direct, Indirect and Relative Addressing modes

Special Microcontroller Features:

• Power-on Reset POR

• Power-up Timer PWRT and Oscillator Start-up Timer OST

• Watchdog Timer WDT with its own on-chip RC oscillator for reliable operation

• Dual level Brown-out Reset circuitry

\- 2.5 VBOR Typical

\- 4.0 VBOR Typical

• Programmable code protection

• Power-Saving Sleep mode

• Selectable oscillator options

• Fully static design

• In-Circuit Serial Programming™ ICSP™

CMOS Technology:

• Wide operating voltage range:

\- Industrial: 2.0V to 5.5V

\- Extended: 3.0V to 5.5V

• High Sink/Source Current 25/25 mA

• Wide temperature range:

\- Industrial: -40°C to 85°C

\- Extended: -40°C to 125°C
