Relay SSR 50mA 1.4V DC-IN 0.12A 400V AC-DC-OUT 4Pin SOP T/R
DESCRIPTION
The PS7241-1B is a solid state relay containing GaAs LEDs on the light emitting side input side and normally close N.C. contact MOS FETs on the output side.
It is suitable for analog signal control because of its low offset and high linearity.
FEATURES

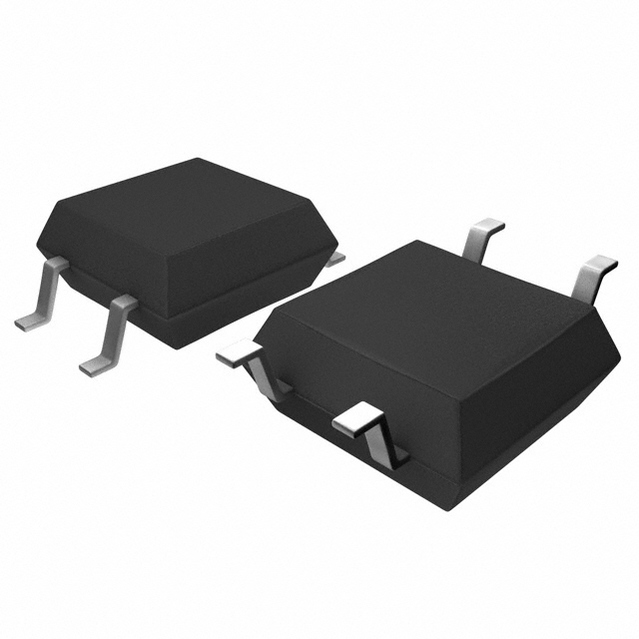

• Small and thin package 4-pin SOP, Height = 2.1 mm
• 1 channel type 1 b output
• Low LED operating current IF = 2 mA
• Designed for AC/DC switching line changer
• Low offset voltage
• Ordering number of taping product: PS7241-1B-E3, E4, E5, F3, F4
• UL approved: File No. E72422 S
• BSI approved: No. 8241/8242
• CSA approved: No. CA 101391
• VDE approved: No. 121302 ÜG
APPLICATIONS
• Laptop PC, PDA
• Modem card
• Telephone, FAX
• Measurement equipment
