PVT312LS-TPBF

Relay SSR 25mA DC-IN 0.17A 250V AC-DC-OUT 6Pin PDIP SMT T/R

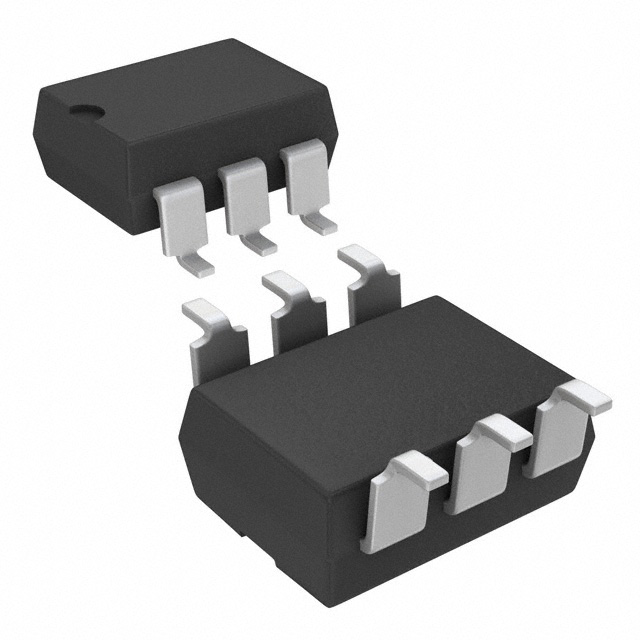

The PVT312 Photovoltaic Relay is a single-pole, normally open solid state relay that can replace electromechanical relays in many applications. It utilizes "s proprietary HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode LED which is optically isolated from the photovoltaic generator. This SSR is specifically designed for telecom applications. PVT312L employs an active current-limiting circuitry enabling it to withstand current surge transients. PVT312 Relays are packaged in a 6-pin, molded DIP package with either thru-hole or surface mount gull-wing terminals. It is available in standard plastic shipping tubes or on tape-and-reel.

**Features:**

* HEXFET Power MOSFET Output

* Bounce-Free Operation

* 4000 VRMS I/O Isolation

* Load Current Limiting

* Linear AC/DC Operation

* Solid State Reliability

* UL Recognized and BABT Certified

* ESD Tolerance: - 4000 V Human Body Model - 500 V Machine Model
