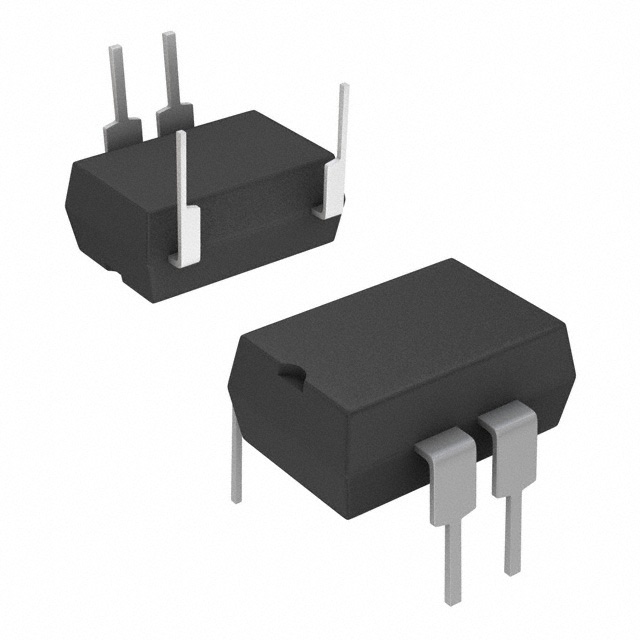

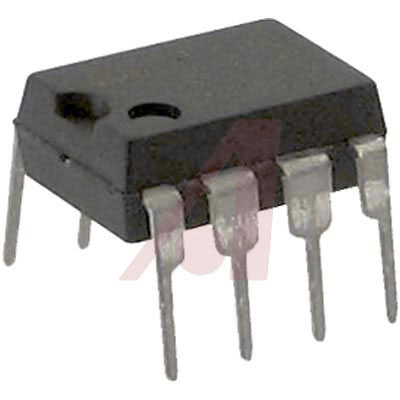

PVD1354NPBF

Relay SSR 25mA DC-IN 0.55A 100V DC-OUT 4Pin PDIP Tube

The PVD13 Series DC Relay PVD is a single-pole, normally open, solid-state replacement for electromechanical relays used for general-purpose switching of analog signals. It utilizes "s HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode LED, which is optically isolated from the photovoltaic generator. The PVD13 Series overcomes the limitations of both conventional electromechanical and reed relays by offering the solid state advantages of long life, fast operating speed, low pick up power, bounce-free operation, low thermal offset voltages and miniature package. These advantages allow product improvement and design innovations in many applications such as process control, multiplexing, automatic test equipment and data acquisition. The PVD13 can switch analog signals from thermocouple level to 100 Volts peak DC. Signal frequencies into the RF range are easily controlled and switching rates up to 450 Hz are achievable. The extremely small thermally generated offset voltages allow increased measurement accuracies. These relays are packaged in 8-pin, molded DIP packages and available with either thru-hole or surface-mount “gull-wing” leads, in plastic shipping tubes.

**Features:**

* Bounce-Free Operation

* 1010 Off-State Resistance

* 1000 V/ms dv/dt

* 5 mA Input Sensitivity

* 4000 VRMS I/O Isolation

* Solid State Reliability

* UL Recognized

* ESD Tolerance: - 4000 V Human Body Model - 500 V Machine Model
