Zero Delay Buffer 1Out Single-Ended 8Pin SOIC N T/R
P3P623S00B/E is a versatile, 3.3V zero-dealy buffer designed to distribute Timing-Safe™ clocks with peak EMI reduction.P3P623S00B is an eight pin version, accepts one reference input and drives out one low skew Timing-Safe™ clock.P3P623S00E accepts one reference input and drives out eight low-skew Timing-Safe™clocks.P3P623S0B/E has an SS% that selects two different deviation and associated Input-Output skewTskew.P3P623S00E has a CLKOUT for adjusting the Input-Output clock dealy, depending upon the value of capacitor connected at this pin to GND.P3P623S00B/E operates from a 3.3V supply and is available in two different packages, as shown in the ordering information table.
Features
---
|
无卤素状态 Halogen Free
输出接口数 1
电路数 1
输入数 1
最大占空比 60 %
下降时间Max 2.5 ns
上升时间Max 2.5 ns
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 3V ~ 3.6V
安装方式 Surface Mount

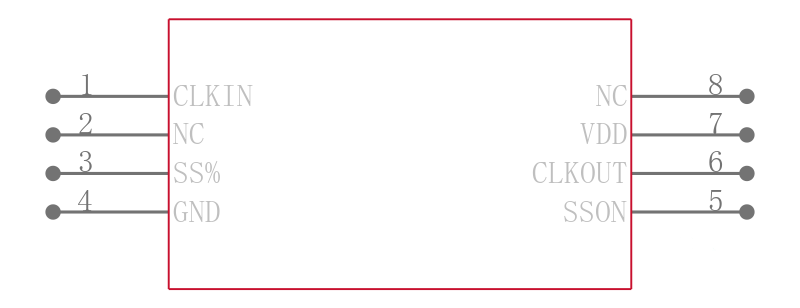

引脚数 8

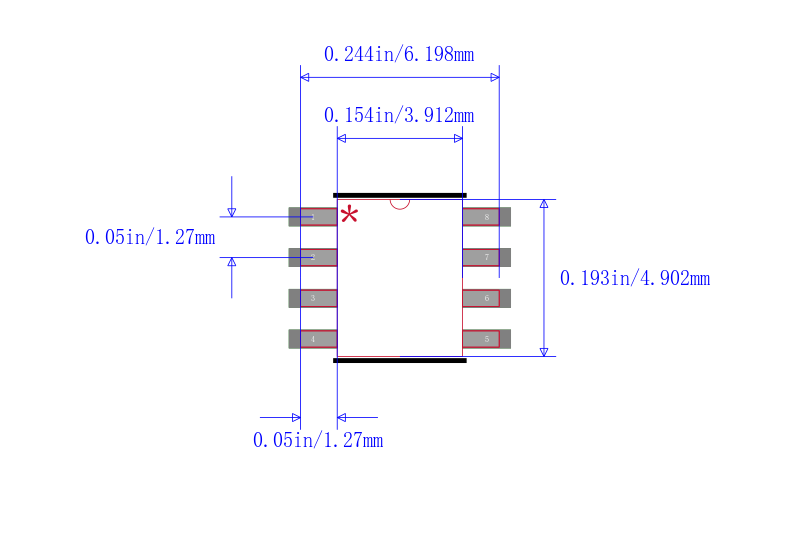

封装 SOIC-8
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Displays and memory interface systems.
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
