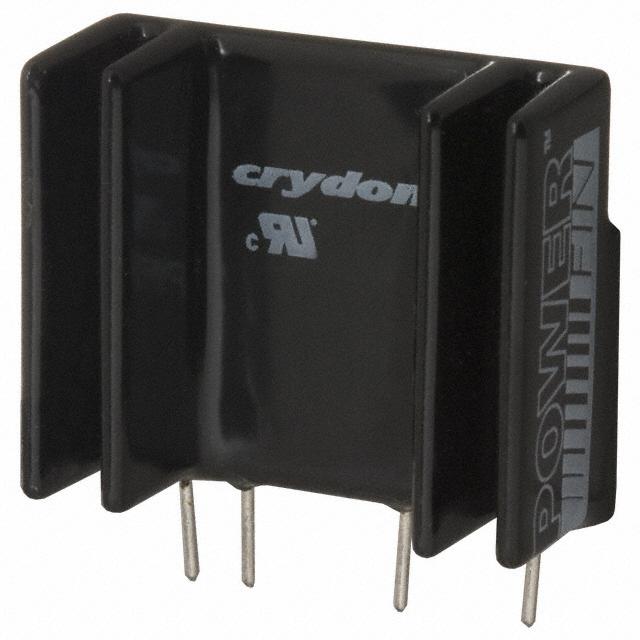

PF480D25

CRYDOM  PF480D25  固态继电器, PowerFin / PF系列, SIP, SPST-常开, 25 A, 电路板, 通孔安装, 48 Vrms, 660 Vrms

PF 系列 - 12 至 660V 交流时 25A，单列直插式，带集成散热片

超高稳态电流额定值

低泄漏（断开状态）

SCR 输出

交流或直流控制型

浪涌电流峰值：250A

输入 - 输出电容：8pF

工作温度范围：-40 → +80°C

除非另有说明，零交叉开关为随机型

尺寸：49.1mm 高 x 22.8mm 宽 x 43.1mm 厚

### 认可

UL, VDE

欧时:
固态继电器,带散热器,10A, 3-24V�

e络盟:
固态继电器, PowerFin / PF系列, SIP, SPST-常开, 25 A, 电路板, 通孔安装, 48 Vrms, 660 Vrms

艾睿:
Solid State Relay 15mA 15V DC-IN 25A 660V AC-OUT 4-Pin SIP Module

Allied Electronics:
Relay; SSR; Zero-Switching; Ctrl-V 5DC; Vol-Rtg 48-660AC; PCB/PCB Mnt; Solder; 4 Pin

富昌:
PF Series 10 A 660 V PCB Mount Solid State Relay

Chip1Stop:
Relay SSR 15mA 15V DC-IN 25A 660V AC-OUT 4-Pin SIP

TME:
Relay: solid state; Ucntrl:4VDC; 25A; 48÷660VAC; THT; SIP; -30÷80°C

Verical:
Relay SSR 15mA 15V DC-IN 25A 660V AC-OUT 4-Pin SIP Module

Newark:
# CRYDOM  PF480D25  Solid State Relay, SPST-NO, 25 A, PCB, Through Hole, 48 Vrms, 660 Vrms

MASTER:
Solid State Relay, Voltage Input: 4-15 VDC, Voltage Load: 48-660VAC, Current Rating: 25A, PCB Mount

Online Components:
SOLID STATE RELAY 48-660 V - PCB SIP SSR 660VAC/10A, LVDC, ZC

Electro Sonic:
Solid State Relay, Voltage Input: 4-15 VDC, Voltage Load: 48-660VAC, Current Rating: 25A, PCB Mount
