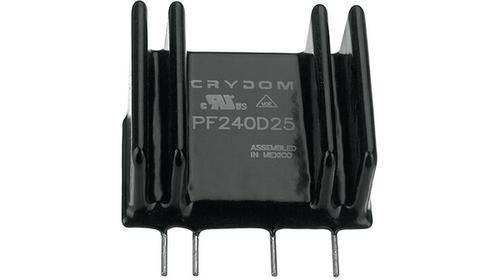

PFE240D25

PFE 系列 15 ~ 32 Vdc 12 ~ 280 Vac 过零 PCB 安装 固态 继电器

PF 系列 - 12 至 660V 交流时 25A，单列直插式，带集成散热片

超高稳态电流额定值

低泄漏（断开状态）

SCR 输出

交流或直流控制型

浪涌电流峰值：250A

输入 - 输出电容：8pF

工作温度范围：-40 → +80°C

除非另有说明，零交叉开关为随机型

尺寸：49.1mm 高 x 22.8mm 宽 x 43.1mm 厚

### 认可

UL, VDE

欧时:
Sensata / Crydom 25 A rms PCB安装 固态继电器 PFE240D25, SCR输出, 零交叉切换, 280V有效值

艾睿:
Relay SSR 15mA 32V DC-IN 25A 280V AC-OUT 4-Pin SIP Module

Allied Electronics:
Relay; SSR; Zero-Switching; Ctrl-V 24DC; Vol-Rtg 12-280AC; PCB/PCB Mnt; Solder; 4 Pin

安富利:
RELAY SSR 25A 24VDC DC-IN ZERO-X

富昌:
PFE Series 15 ~ 32 Vdc 12 ~ 280 Vac Zero Crossing PCB Mount Solid Sate Relay

Chip1Stop:
Relay SSR 15mA 32V DC-IN 25A 280V AC-OUT 4-Pin SIP

TME:
Relay: solid state; Ucntrl:15÷32VDC; 25A; 24÷280VAC; THT; SIP

Verical:
Relay SSR 15mA 32V DC-IN 25A 280V AC-OUT 4-Pin SIP Module

Newark:
# CRYDOM  PFE240D25  Solid State Relay, SPST-NO, 25 A, PCB, Through Hole, 12 VAC, 280 VAC

MASTER:
SOLID STATE RELAY 12-280 V - PCB SIP SSR 240VAC/10A, 24VDC, ZC

Online Components:
SOLID STATE RELAY 12-280 V - PCB SIP SSR 240VAC/10A, 24VDC, ZC

Electro Sonic:
SOLID STATE RELAY 12-280 V - PCB SIP SSR 240VAC/10A, 24VDC, ZC
