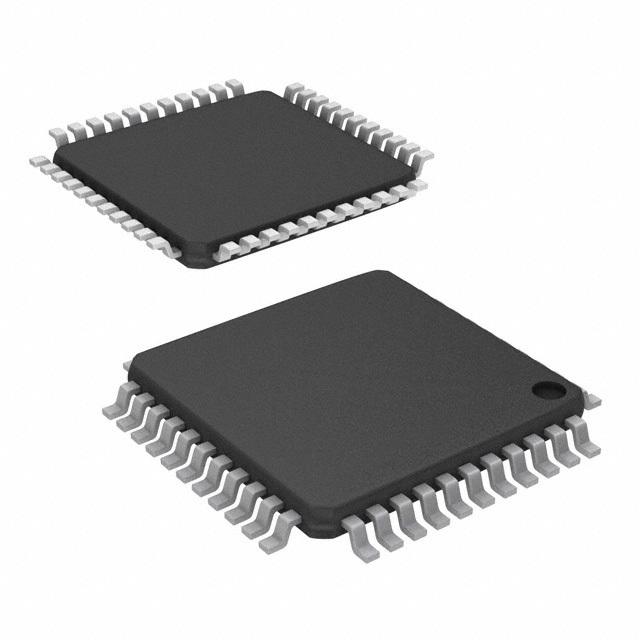

MCU 8Bit PIC16 PIC RISC 14KB Flash 2.5V/3.3V 44Pin TQFP Tray
DEVICE OVERVIEW
The PIC16F707/PIC16LF707 devices are covered by this data sheet. They are available in 40/44-pin packages. Figure 1-1 shows a block diagram of the PIC16F707/PIC16LF707 devices. Table 1-1 shows the pinout descriptions.
High-Performance RISC CPU:
• Only 35 Single-Word Instructions to Learn:
- All single-cycle instructions except branches
• Operating Speed:
- DC – 20 MHz clock input
- DC – 200 ns instruction cycle
• 8K x 14 Words of Flash Program Memory
• 363 Bytes of Data Memory SRAM
• Interrupt Capability
• 8-Level Deep Hardware Stack
• Direct, Indirect and Relative Addressing modes
• Processor Read Access to Program Memory
• Pinout Compatible to other 40-pin PIC16CXXX and PIC16FXXX Microcontrollers
Special Microcontroller Features:
• Precision Internal Oscillator:
- 16 MHz or 500 kHz operation
- Factory calibrated to ±1%, typical
- Software selectable ÷1, ÷2, ÷4 or ÷8 divider
• 31 kHz Low-Power Internal Oscillator
• External Oscillator Block with:
- 3 crystal/resonator modes up to 20 MHz
- 3 external clock modes up to 20 MHz
• Power-on Reset POR
• Power-up Timer PWRT
• Oscillator Start-Up Timer OST
• Brown-out Reset BOR:
- Selectable between two trip points
- Disabled in Sleep option
• Watchdog Timer WDT
• Programmable Code Protection
• In-Circuit Serial Programming™ ICSP™ via two pins
• In-Circuit Debug ICD via Two Pins
• Multiplexed Master Clear with Pull-up/Input Pin
• Industrial and Extended Temperature Range
• High-Endurance Flash Cell:
- 1,000 Write Flash Endurance typical
- Flash Retention: >40 years
- Power-Saving Sleep mode
• Operating Voltage Range:
- 1.8V to 3.6V PIC16LF707
• 1.8V to 5.5V PIC16F707
Extreme Low-Power Management PIC16LF707 with nanoWatt XLP:
• Sleep mode: 20 nA @ 1.8V, typical
• Watchdog Timer: 500 nA @ 1.8V, typical
• Timer1 Oscillator: 600 nA @ 1.8V, typical @ 32 kHz
mTouch™ Technology Features:
• Up to 32 Channels
• Two Capacitive Sensing modules:
- Acquire 2 samples simultaneously
• Multiple Power modes:
- Operation during Sleep
- Proximity sensing with ultra low µA current
• Adjustable Waveform Min. and Max. for Optimal Noise Performance
• 1.8V to 5.5V Operation 3.6V max. for PIC16LF707
Analog Features:
• A/D Converter:
- 8-bit resolution and up to 14 channels
- Conversion available during Sleep
- Selectable 1.024V/2.048V/4.096V voltage reference
• On-chip 3.2V Regulator PIC16F707 device only
Peripheral Highlights:
• Up to 35 I/O Pins and 1 Input-only Pin:
- High current source/sink for direct LED drive
- Interrupt-on-pin change
- Individually programmable weak pull-ups
• Timer0/A/B: 8-Bit Timer/Counter with 8-Bit Prescaler
• Enhanced Timer1/3:
- Dedicated low-power 32 kHz oscillator driver
- 16-bit timer/counter with prescaler
- External Gate Input mode with toggle and single shot modes
- Interrupt-on-gate completion
• Timer2: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler
• Two Capture, Compare, PWM modules CCP:
- 16-bit Capture, max. resolution 12.5 ns
- 16-bit Compare, max. resolution 200 ns
- 10-bit PWM, max. frequency 20 kHz
• Addressable Universal Synchronous
Asynchronous Receiver Transmitter AUSART
