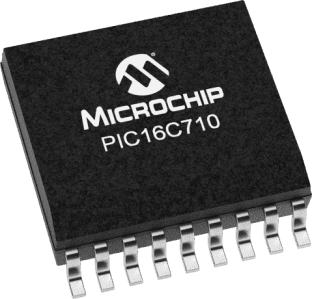

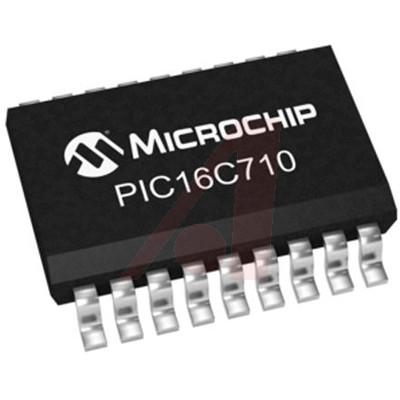

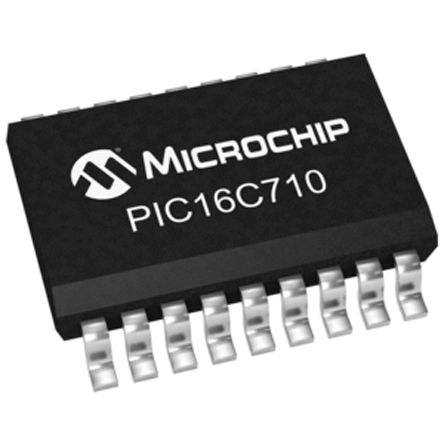

PIC16C71/710/711/715 8 位微控制器Microchip 的 PIC16C 系列微控制器 8 位 CMOS MCU,将 Microchip 的 PIC® 体系架构融入到引脚和封装选件中,从节省空间的 14 引脚设备到功能丰富的 64 引脚设备。 现在由基于闪存的型号代替,这些设备在传统设计方面也仍受到欢迎。 对于新应用,应考虑 PIC16F 型号。 PIC16C71/710/711/715 系列微控制器基于 Microchip 中档体系结构,带 8 层硬件堆栈和 35 个 14 位指令。 这些 MCU 提供高达 5 MIPS、3.5 字节程序内存和高达 128 字节 RAM 的数据存储器。 板载是一个 RC 振荡器。### 特点35 个指令 8 级硬件堆栈 RC 振荡器 13 个输入/输出引脚 一个 8 位计时器 4 通道 8 位模拟到数字转换器 监控计时器 WDT 通电重置 POR 通电计时器 PWRT 振荡器启动计时器 OST 掉电重置 BOR – 除 PIC16C71 型号外 在线串行编程 ICSP ### PIC16 微控制器
GENERAL DESCRIPTION
The PIC16C71X is a family of low-cost, high-performance, CMOS, fully-static, 8-bit microcontrollers with integrated analog-to-digital A/D converters, in the PIC16CXX mid-range family.
Devices included in this data sheet:
• PIC16C710
• PIC16C71
• PIC16C711
• PIC16C715
PIC16C71X Microcontroller Core Features:
• High-performance RISC CPU
• Only 35 single word instructions to learn
• All single cycle instructions except for program branches which are two cycle
• Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle
• Up to 2K x 14 words of Program Memory, up to 128 x 8 bytes of Data Memory RAM
• Interrupt capability
• Eight level deep hardware stack
• Direct, indirect, and relative addressing modes
• Power-on Reset POR
• Power-up Timer PWRT and Oscillator Start-up Timer OST
• Watchdog Timer WDT with its own on-chip RC oscillator for reliable operation
• Programmable code-protection
• Power saving SLEEP mode
• Selectable oscillator options
• Low-power, high-speed CMOS EPROM technology
• Fully static design
• Wide operating voltage range: 2.5V to 6.0V
• High Sink/Source Current 25/25 mA
• Commercial, Industrial and Extended temperature ranges
• Program Memory Parity Error Checking Circuitry with Parity Error Reset PER PIC16C715
• Low-power consumption:
- < 2 mA @ 5V, 4 MHz
- 15 µA typical @ 3V, 32 kHz
- < 1 µA typical standby current
PIC16C71X Peripheral Features:
• Timer0: 8-bit timer/counter with 8-bit prescaler
• 8-bit multichannel analog-to-digital converter
• Brown-out detection circuitry for Brown-out Reset BOR
• 13 I/O Pins with Individual Direction Control
电源电压DC 5.00 V, 6.00 V max
时钟频率 4.00MHz max
RAM大小 36 B
位数 8
耗散功率 1000 mW
I/O引脚数 13
存取时间 4.00 µs
内核架构 PIC
模数转换数ADC 1
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 1000 mW
电源电压Max 6 V
电源电压Min 2.5 V

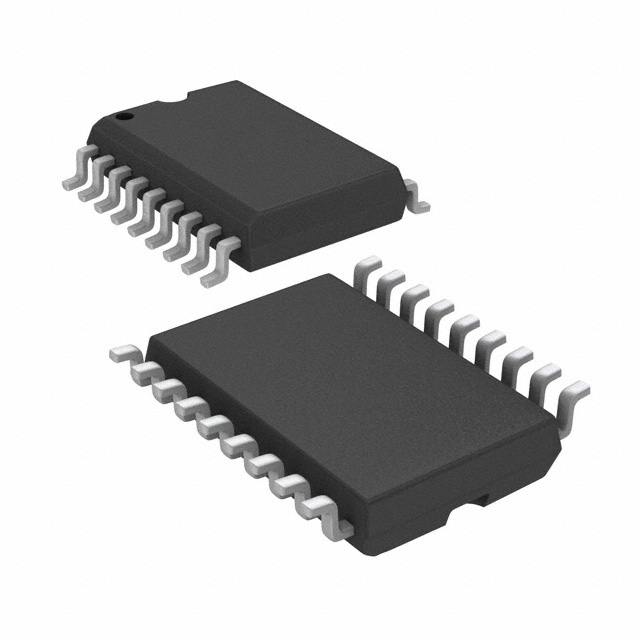

安装方式 Surface Mount
引脚数 18
封装 SOIC-18
长度 11.74 mm
宽度 7.595 mm
高度 2.342 mm
封装 SOIC-18
工作温度 0℃ ~ 70℃ TA
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC16LC710-04/SO Microchip 微芯 | 当前型号 | 当前型号 |
PIC16F716-I/SO 微芯 | 类似代替 | PIC16LC710-04/SO和PIC16F716-I/SO的区别 |
PIC16LC710T-04/SO 微芯 | 类似代替 | PIC16LC710-04/SO和PIC16LC710T-04/SO的区别 |
PIC16F716-I/P 微芯 | 功能相似 | PIC16LC710-04/SO和PIC16F716-I/P的区别 |
