28 /40/ 44引脚,低功耗,高性能的微控制器采用nanoWatt XLP技术 28/40/44-Pin, Low-Power, High-Performance Microcontrollers with nanoWatt XLP Technology
PIC series IC 8 位 64MHz 64KB(32K x 16) 闪存 44-TQFP(10x10)
欧时:
64KB, Flash, 3968bytes-RAM,8-bit Family
得捷:
IC MCU 8BIT 64KB FLASH 44TQFP
立创商城:
PIC 64MHz 闪存:32K@x16bit RAM:3.8KB
艾睿:
With the PIC18F46K22T-I/PT microcontroller by Microchip Technology, many functions and tasks can be automated to a developer&s;s desired specifications. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 16 MHz. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 1.8 V, while its maximum is 5.5 V. This is a 8 bit processor. This device is based on the PIC core architecture. Its flash program memory is 64KB. Its ADC resolution is 10.
Allied Electronics:
64KB; Flash; 3968bytes-RAM; 8-bit Family44 TQFP 10x10x1mm T/R
Verical:
MCU 8-bit PIC RISC 64KB Flash 2.5V/3.3V/5V Automotive 44-Pin TQFP T/R
Online Components:
MCU 8-bit PIC18 PIC RISC 64KB Flash 2.5V/3.3V/5V Automotive 44-Pin TQFP T/R
频率 64 MHz
针脚数 44
RAM大小 3.8K x 8
位数 8
模数转换数ADC 1
输入/输出数 36 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 2.3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 44

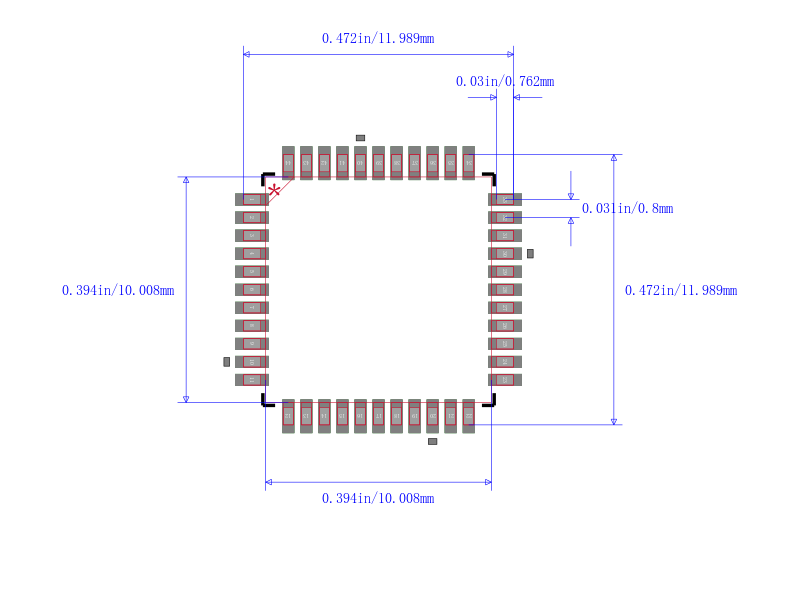

封装 TQFP-44
封装 TQFP-44
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 3A991
HTS代码 8542310001
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC18F46K22T-I/PT Microchip 微芯 | 当前型号 | 当前型号 |
PIC18F45K22-I/PT 微芯 | 类似代替 | PIC18F46K22T-I/PT和PIC18F45K22-I/PT的区别 |
PIC18F46K22-I/PT 微芯 | 类似代替 | PIC18F46K22T-I/PT和PIC18F46K22-I/PT的区别 |
PIC18F44K22-I/PT 微芯 | 类似代替 | PIC18F46K22T-I/PT和PIC18F44K22-I/PT的区别 |
