PD55015STR-E

RF功率晶体管， LDMOST塑料家族的N沟道增强模式，横向MOSFET的 RF POWER transistor, LdmoST plastic family N-channel enhancement-mode, lateral MOSFETs

Description

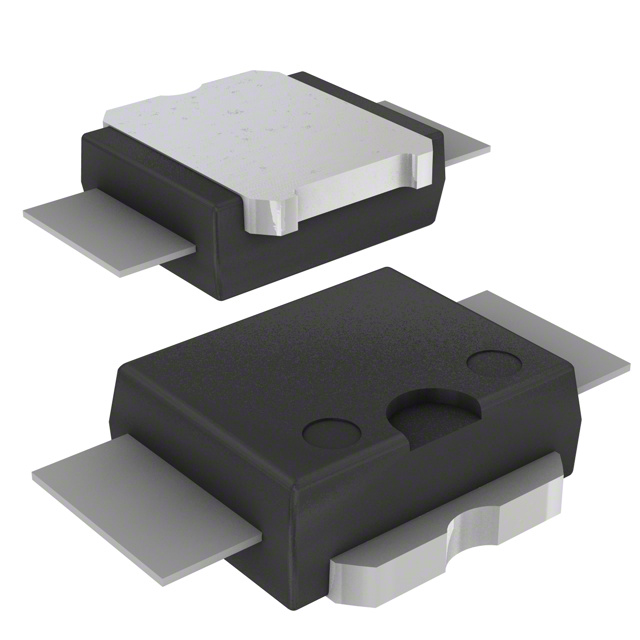

The device is a common source N-channel, enhancement-mode lateral field-effect RF power transistor. It is designed for high gain, broad band commercial and industrial applications. It operates at 12 V in common source mode at frequencies up to 1 GHz. The device boasts the excellent gain, linearity and reliability of ST’s latest LDMOS technology mounted in the first true SMD plastic RF power package, PowerSO-10RF. The device’s superior linearity performance makes it an ideal solution for car mobile radio. The PowerSO-10 plastic package, designed to offer high reliability, is the first ST JEDEC approved, high power SMD package. It has been specially optimized for RF needs and offers excellent RF performance and ease of assembly. Mounting recommendations are available in www.st.com/rf/ look for application note AN1294.

Features

■ Excellent thermal stability

■ Common source configuration

■ POUT = 25 W with 14.5dB gain @ 500 MHz / 12.5 V

■ New RF plastic package
