PIC 20MHz 闪存：4K@x14bit
MCU 8-bit PIC16 PIC RISC 7KB EPROM 5V 20-Pin PDIP Tube
立创商城:
PIC 20MHz 闪存：4K@x14bit
得捷:
IC MCU 8BIT 7KB OTP 20DIP
艾睿:
A microcontroller is used in modern day control systems, this PIC16C771-E/P microcontroller from Microchip Technology is ideal for you. This microcontroller has an operating temperature range of -40 °C to 125 °C. It has a maximum clock speed of 20 MHz. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4 V, while its maximum is 5.5 V. Its ADC resolution is 12. This device is based on the PIC core architecture. Its eprom program memory is 7KB. This is a 8 bit processor.
Allied Electronics:
IC MCU 8BIT 7KB OTP 20DIP
安富利:
MCU 8-bit PIC16 PIC RISC 7KB EPROM 5V 20-Pin PDIP Tube
Verical:
MCU 8-bit PIC16 PIC RISC 7KB EPROM 5V 20-Pin PDIP Tube
Online Components:
MCU 8-bit PIC16 PIC RISC 7KB EPROM 5V 20-Pin PDIP Tube
频率 20 MHz
电源电压DC 5.00 V, 5.50 V max
时钟频率 20.0MHz max
RAM大小 256 B
位数 8
耗散功率 1000 mW
I/O引脚数 16
存取时间 20.0 µs
内核架构 PIC
内核子架构 PIC16
模数转换数ADC 1
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
安装方式 Through Hole

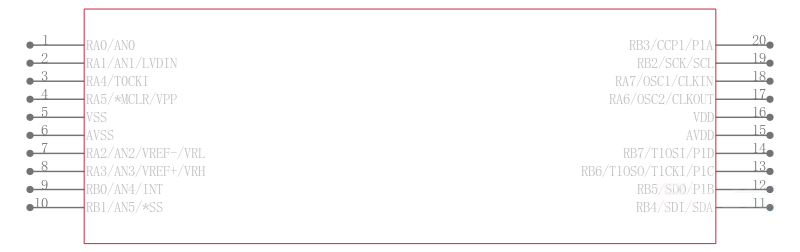

引脚数 20

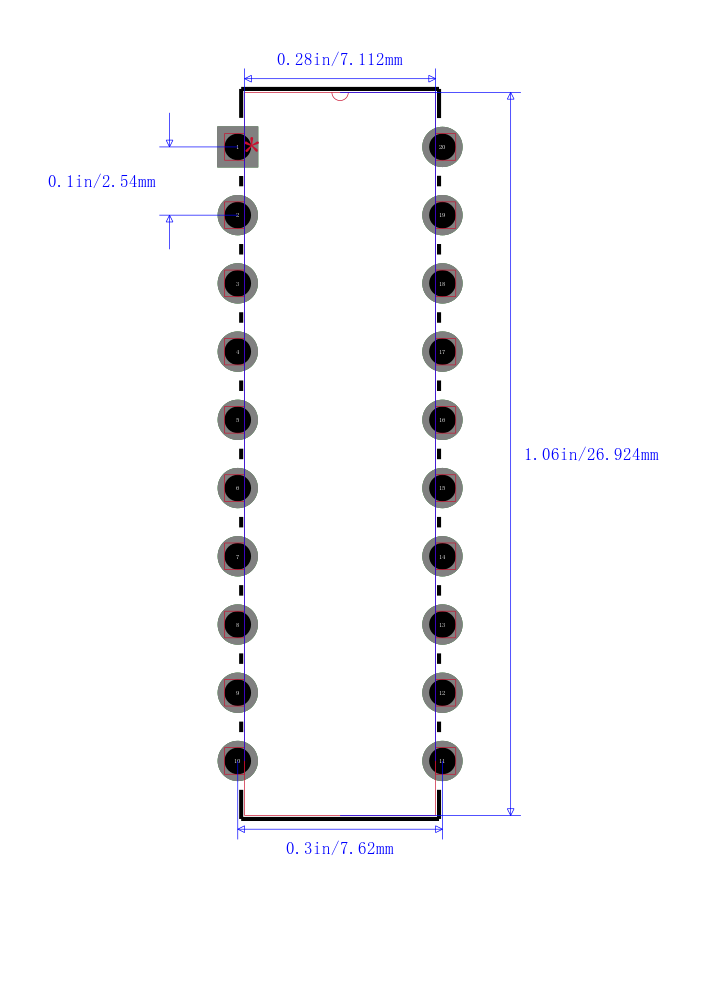

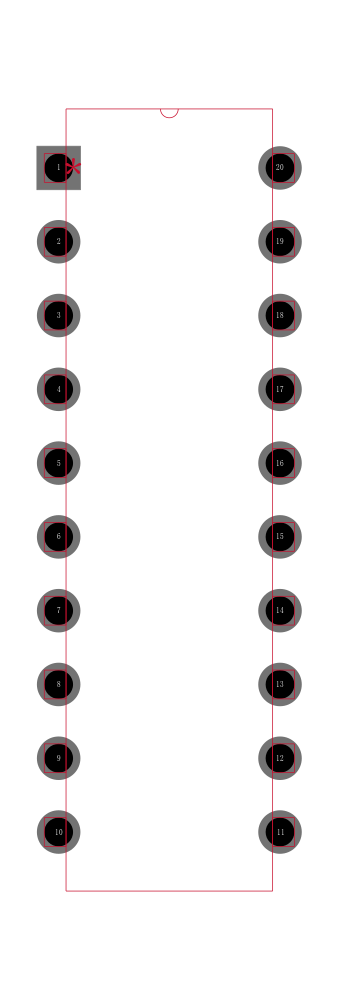

封装 PDIP-20
封装 PDIP-20
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
PIC16C771-E/P Microchip 微芯 | 当前型号 | 当前型号 |
PIC16C771-E/SO 微芯 | 完全替代 | PIC16C771-E/P和PIC16C771-E/SO的区别 |
PIC16C771/P 微芯 | 类似代替 | PIC16C771-E/P和PIC16C771/P的区别 |
PIC16C771-I/P 微芯 | 类似代替 | PIC16C771-E/P和PIC16C771-I/P的区别 |
