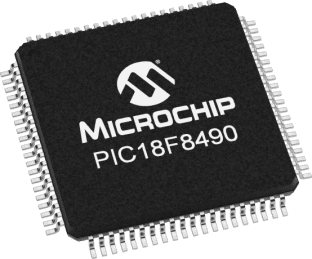

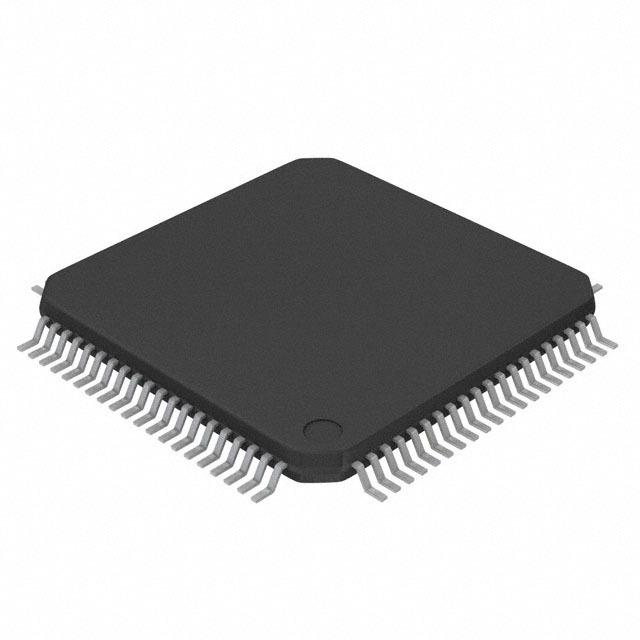

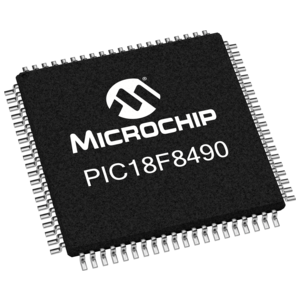

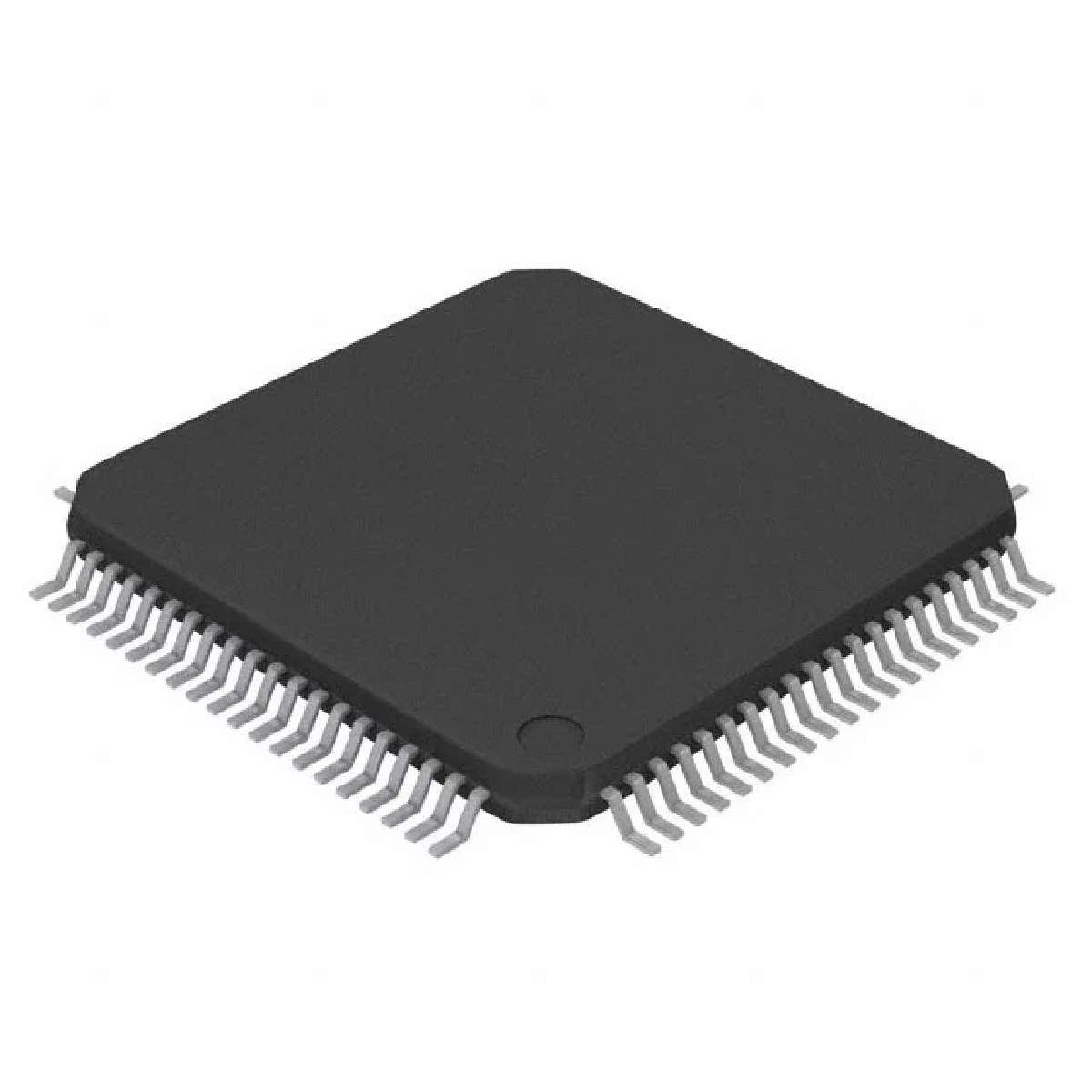

八十〇分之六十四引脚闪存微控制器与LCD驱动器和纳瓦技术 64/80-Pin Flash Microcontrollers with LCD Driver and nanoWatt Technology
LCD Driver Module Features:
Direct Driving of LCD Panel
Up to 48 Segments: Software Selectable
Programmable LCD Timing module:
\- Multiple LCD timing sources available
\- Up to 4 commons: Static, 1/2, 1/3 or 1/4 multiplex
\- Static, 1/2 or 1/3 bias configuration
Can drive LCD Panel while in Sleep mode
立创商城:
PIC 40MHz 闪存:8K@x16bit
得捷:
IC MCU 8BIT 16KB FLASH 80TQFP
艾睿:
This PIC18F8490-E/PT microcontroller from Microchip Technology is perfect for users that want a fast CPU. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has a maximum clock speed of 40 MHz. This is a 8 bit processor. Its flash program memory is 16KB. This device is based on the PIC core architecture. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.2 V, while its maximum is 5.5 V. Its ADC resolution is 10.
Allied Electronics:
16 KB Flash, 768 RAM, 66 I/O
安富利:
MCU 8-bit PIC18 PIC RISC 16KB Flash 5V 80-Pin TQFP Tray
Chip1Stop:
MCU 8-bit PIC18 PIC RISC 16KB Flash 5V 80-Pin TQFP Tray
电源电压DC 5.00 V, 5.50 V max
时钟频率 40.0MHz max
RAM大小 768 B
位数 8
耗散功率 1000 mW
FLASH内存容量 16 KB
I/O引脚数 66
存取时间 40.0 µs
内核架构 PIC
内核子架构 PIC18
模数转换数ADC 1
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压Max 5.5 V
电源电压Min 4.2 V
安装方式 Surface Mount

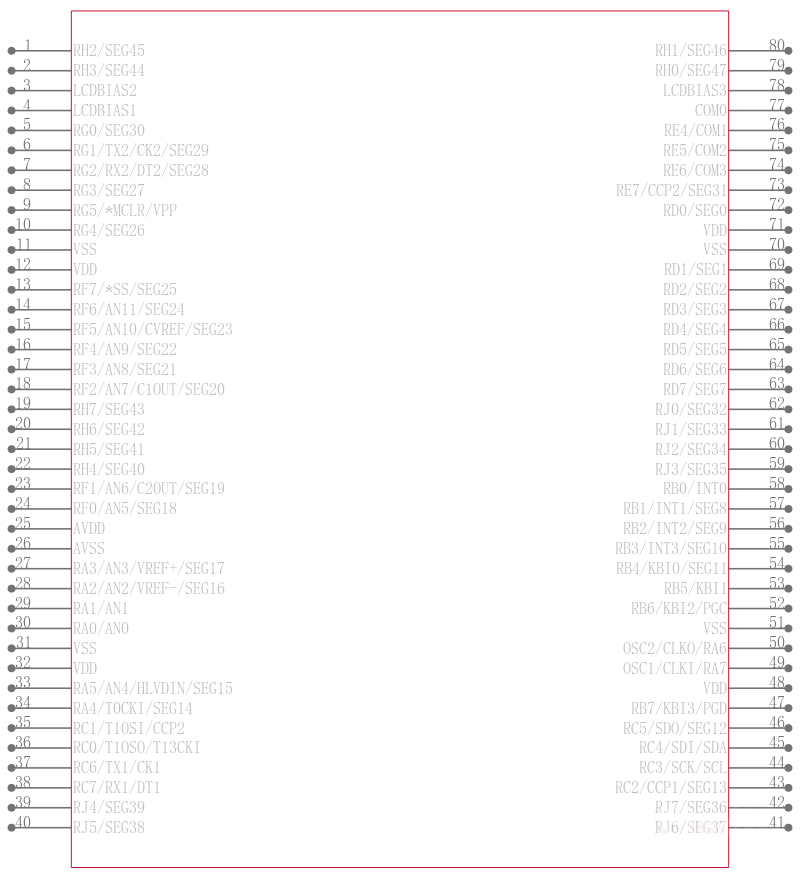

引脚数 80

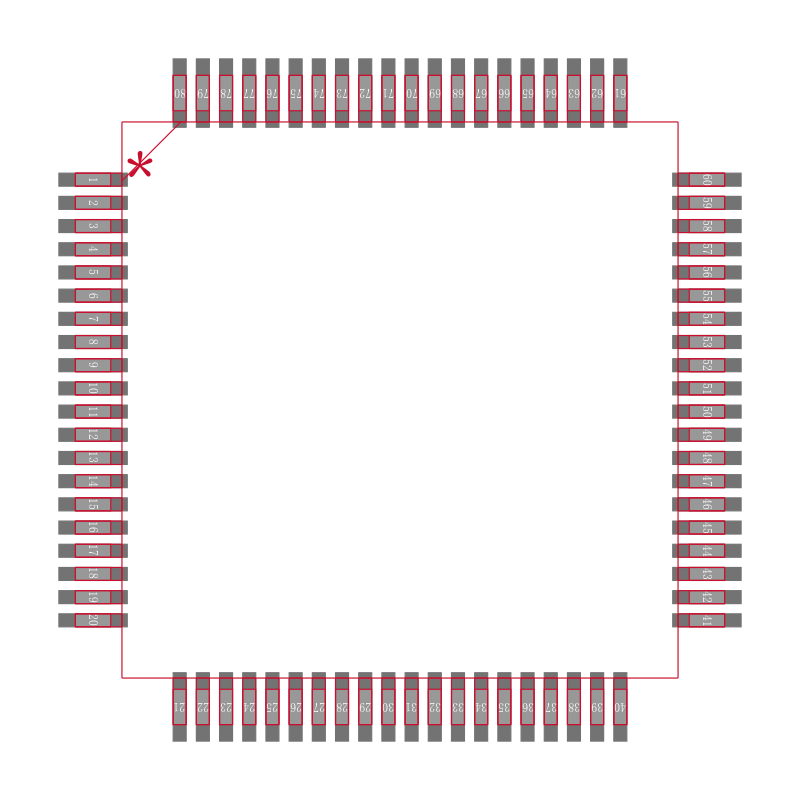

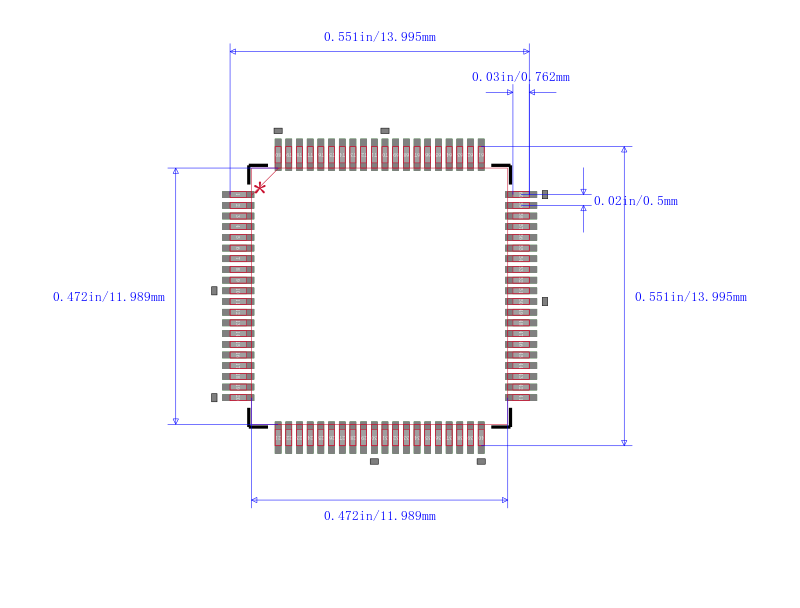

封装 TQFP-80
封装 TQFP-80
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
