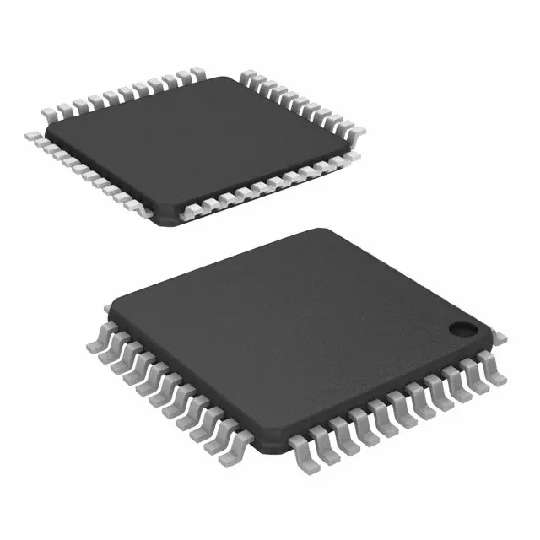

PIC18 8位 微控制器 带16 KB 闪存 采用44 引脚TQFP封装
PIC series IC 8 位 40MHz 16KB(8K x 16) 闪存 44-TQFP(10x10)
得捷:
IC MCU 8BIT 16KB FLASH 44TQFP
立创商城:
PIC 40MHz 闪存:8K@x16bit
贸泽:
8-bit Microcontrollers - MCU 16 KB FL 768 RAM 36 I/O
艾睿:
Microchip Technology&s;s PIC18F4480T-I/PT microcontroller can essentially eliminate certain components and speed up simple tasks within your circuit. This microcontroller has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has a maximum clock speed of 40 MHz. This is a 8 bit processor. Its ADC resolution is 10. This device is based on the PIC core architecture. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V. Its flash program memory is 16KB.
Allied Electronics:
16 KB Flash, 768 RAM, 36 I/O
安富利:
MCU 8-bit PIC18 PIC RISC 16KB Flash 2.5V/3.3V/5V 44-Pin TQFP T/R
Chip1Stop:
MCU 8-bit PIC18 PIC RISC 16KB Flash 2.5V/3.3V/5V 44-Pin TQFP T/R
儒卓力:
**PIC18F 16K TQFP44 85°C **
电源电压DC 5.00 V, 5.50 V max
时钟频率 40.0MHz max
RAM大小 768 B
位数 8
耗散功率 1000 mW
FLASH内存容量 16 KB
I/O引脚数 25
存取时间 40.0 µs
内核架构 PIC
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1000 mW
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 44

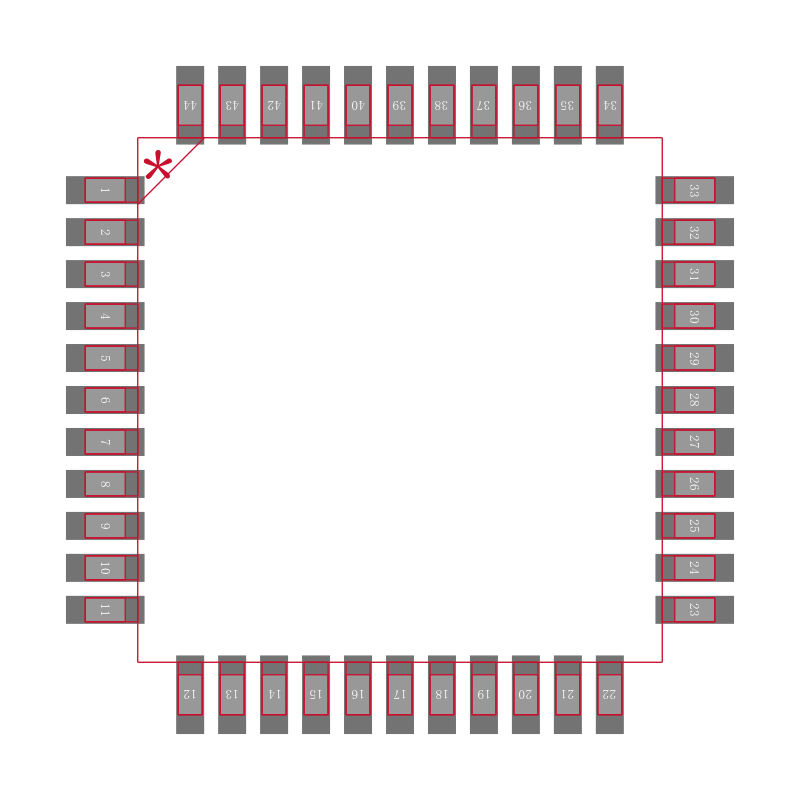

封装 TQFP-44
长度 10 mm
宽度 10 mm
高度 1 mm
封装 TQFP-44
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
PIC18F4480T-I/PT Microchip 微芯 | 当前型号 | 当前型号 |
PIC18LF4480T-I/PT 微芯 | 完全替代 | PIC18F4480T-I/PT和PIC18LF4480T-I/PT的区别 |
PIC18F4480-I/PT 微芯 | 类似代替 | PIC18F4480T-I/PT和PIC18F4480-I/PT的区别 |
PIC18F448T-I/PT 微芯 | 类似代替 | PIC18F4480T-I/PT和PIC18F448T-I/PT的区别 |
